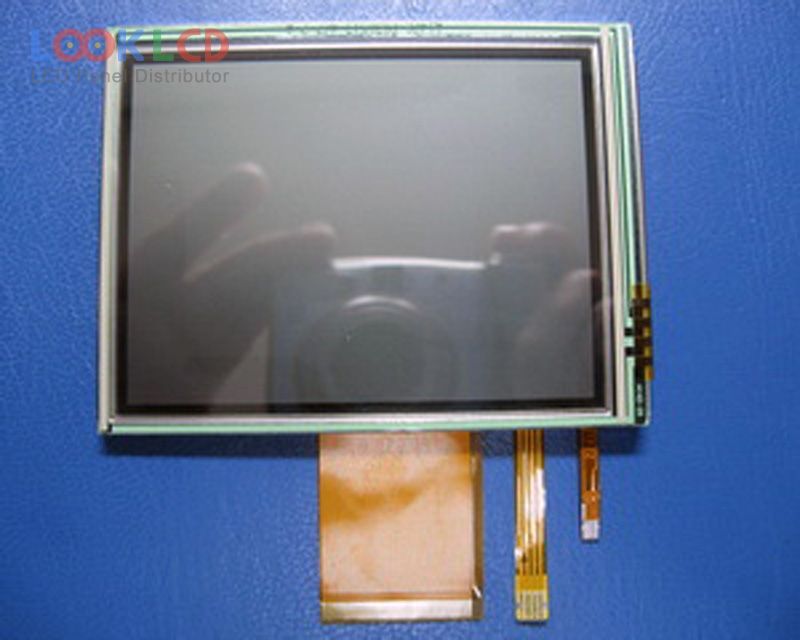

| Broj dijela | LQ035Q7DB04 |
| Marka | SHARP |
| Veličina | 3.5 |
| Primjena | |
| Rezolucija | 240×320 |
| Sastav | LCM |
| Svjetlina | 50 |
| CR | 70:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ035Q7DB04 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 240(RGB)×320 , QVGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno područje | 53.64×71.52 mm |
| obris | 65×85×4.8 mm |
| površinski | Hard coating (3H) |
| svjetlina | 50 cd/m² (Typ.) |
| omjer kontrasta | 70:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 60/100 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 50 pins |
| ulazni napon | 5.0/3.3/15.0/-10.0V (Typ.)(VSGA/VSHD/VDD/VEE) |
