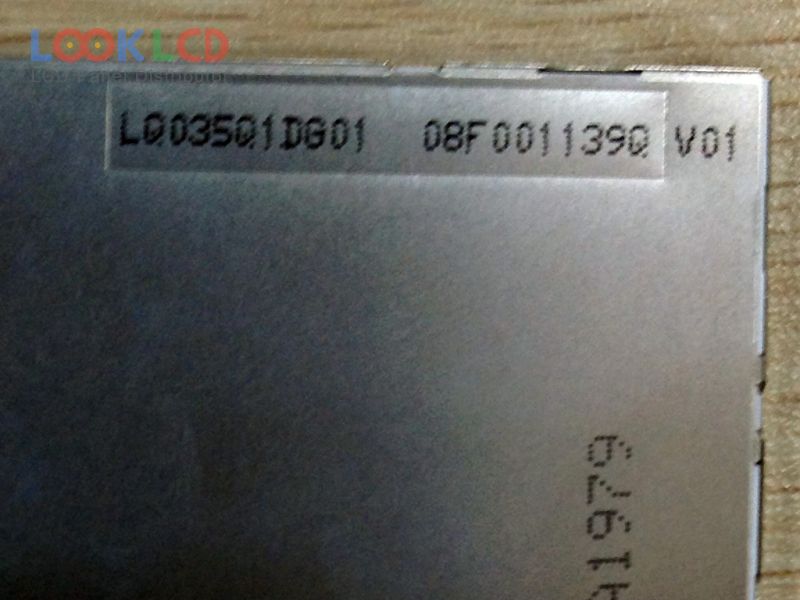

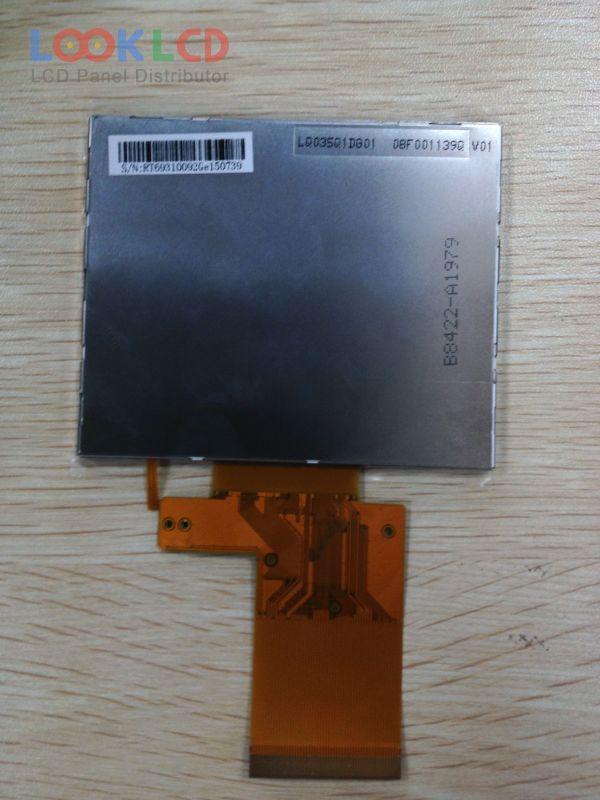

| Broj dijela | LQ035Q1DG01 |
| Marka | SHARP |
| Veličina | 3.5 |
| Primjena | |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 340 |
| CR | 300:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ035Q1DG01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 70.56×52.92 mm |
| obris | 76.9×63.9×3.65 mm |
| površinski | |
| svjetlina | 340 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 30/30 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 7S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) + SPI, 54 pins |
| ulazni napon | 3.3/3.3V (Typ.)(VDD/AVDD) |
