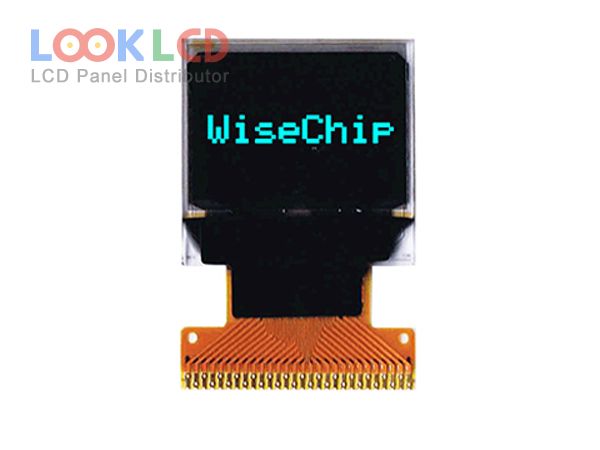

| Broj dijela | UG-6448HLBEG03 |
| Marka | WiseChip |
| Veličina | 0.66 |
| Primjena | |
| Rezolucija | 64×48 |
| Sastav | OLED |
| Svjetlina | 100 |
| CR | 10000:1 |
| Boje | Mono(Blue) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI/I²C |
| marka panela | WiseChip |
| panelni model | UG-6448HLBEG03 |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 0.66 inch |
| rezolucija | 64×48 |
| aktivno područje | 13.42×10.06 mm |
| obris | 18.46×18.1×1.55 mm |
| površinski | |
| svjetlina | 100 cd/m² (Typ.) |
| omjer kontrasta | 10000 : 1 (Typ.) |
| boje prikaza | Mono(Blue) (1-bit) |
| kut gledanja | |
| vozač ic | COG Built-in SSD1306 |
| signalno sučelje | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 28 pins |
| ulazni napon | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: |
