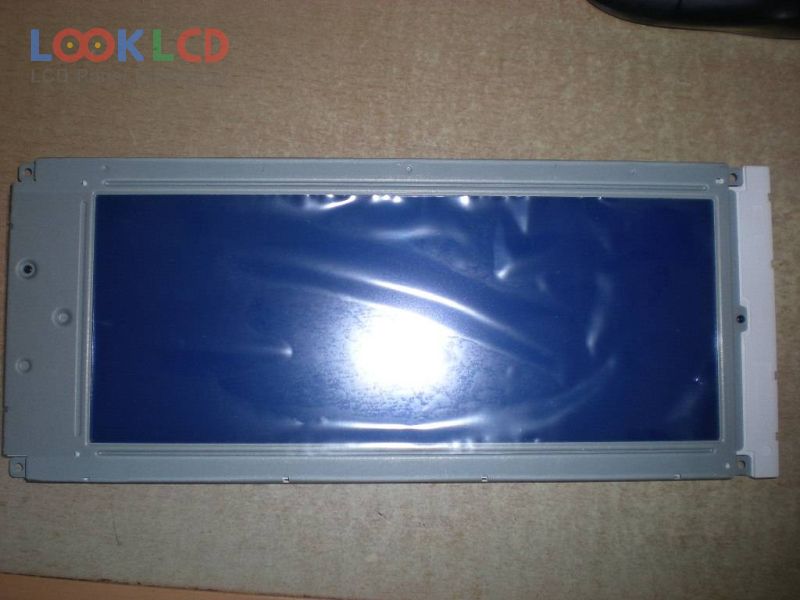

| Broj dijela | LSUGC202XA |
| Marka | ALPS |
| Veličina | 8.9 |
| Primjena | |
| Rezolucija | 640×240 |
| Sastav | LCM |
| Svjetlina | 160 |
| CR | 3:1 |
| Boje | Monochrome |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Parallel Data |
| marka panela | ALPS |
| panelni model | LSUGC202XA |
| vrsta panela | STN-LCD , LCM |
| veličina ploče | 8.9 inch |
| rezolucija | 640×240 , HVGA |
| način prikaza | STN, Blue mode |
| aktivno područje | 211.18×79.18 mm |
| obris | 270.2×112.2 mm |
| površinski | |
| svjetlina | 160 cd/m² (Typ.) |
| omjer kontrasta | 3 : 1 (Typ.) |
| boje prikaza | Monochrome |
| vrijeme odziva | 250/120 (Typ.)(Tr/Td) |
| kut gledanja | 30/30/15/30 (Min.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | Parallel Data (4-bit), 12 pins |
| rohs: |
