Other OEL9M5003-B-E podatkovna tablica, specifikacija, dionice, primjena www.looklcd-hr.com
LookLCD LookLCD

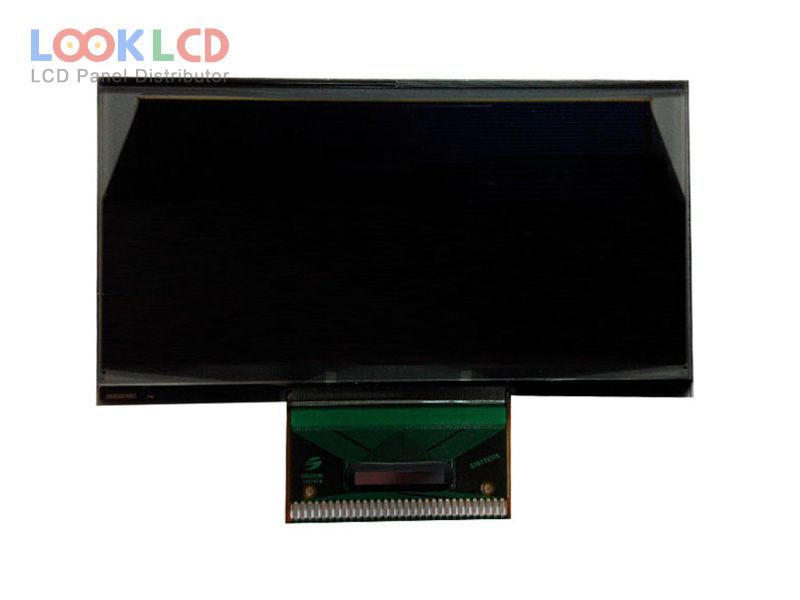

OEL9M5003-B-E

OEL9M5003-B-E
OEL9M5003-B-E thumb
Marka
Other
Veličina
2.7
Primjena
Rezolucija
128×64
Sastav
OLED
Svjetlina
CR
10000:1
Boje
Mono(Blue)
Pozadinsko osvjetljenje
self
Sučelje
CPU/SPI
In Stock
12761
Tehnički podaci

Broj dijela OEL9M5003-B-E
MarkaOther
Veličina2.7
Primjena
Rezolucija128×64
SastavOLED
Svjetlina
CR10000:1
BojeMono(Blue)
Pozadinsko osvjetljenjeself
SučeljeCPU/SPI
marka panelaTRULY
panelni modelOEL9M5003-B-E
vrsta panela PM-OLED , OLED
veličina ploče2.7 inch
rezolucija128×64
aktivno područje61.41×30.69 mm
obris73×40.24×2.15 mm
površinski
svjetlina
omjer kontrasta10000 : 1 (Min.)
boje prikazaMono(Blue) (1-bit)
kut gledanja80/80/80/80 (Min.)(L/R/U/D)
frekvencija100Hz
vozač icTAB Built-in SSD1305T7R1
signalno sučelje8-bit 6800/8080 parallel, SPI, 30 pins
ulazni napon3.0/13.0V (Typ.)(VDD/VCC)
Obiteljski model
OEL9M5001-B-E Other 2.7 128×64
OEL9M5001-G-E Other 2.7 128×64
OEL9M5001-R-E Other 2.7 128×64
OEL9M5001-W-E Other 2.7 128×64
OEL9M5001-Y-E Other 2.7 128×64
OEL9M5003-B-E Other 2.7 128×64
OEL9M5003-G-E Other 2.7 128×64
OEL9M5003-R-E Other 2.7 128×64
OEL9M5003-W-E Other 2.7 128×64
OEL9M5003-Y-E Other 2.7 128×64
