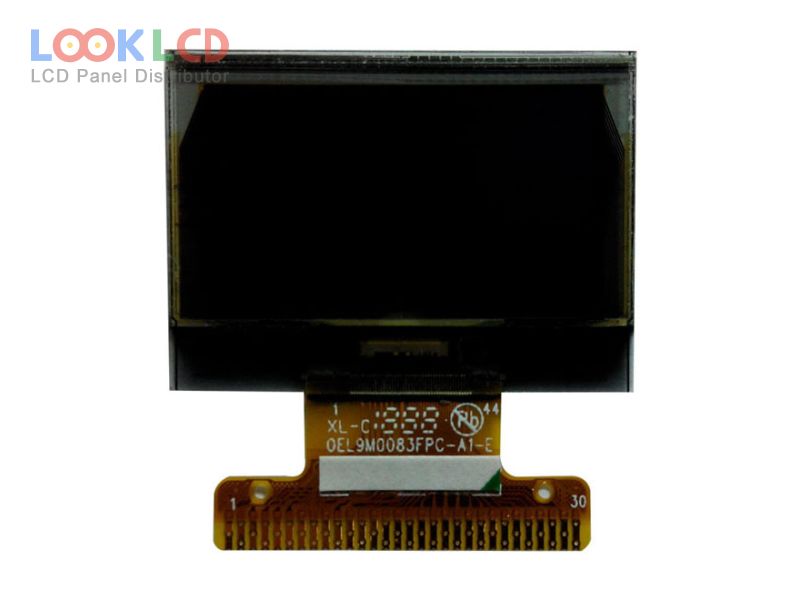

| Broj dijela | OEL9M0083-R-E |
| Marka | Other |
| Veličina | 0.96 |
| Primjena | |
| Rezolucija | 128×64 |
| Sastav | OLED |
| Svjetlina | |
| CR | 10000:1 |
| Boje | Mono(Red) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI/I²C |
| marka panela | TRULY |
| panelni model | OEL9M0083-R-E |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 0.96 inch |
| rezolucija | 128×64 |
| aktivno područje | 21.74×11.175 mm |
| obris | 26.7×19.26×1.65 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 10000 : 1 (Min.) |
| boje prikaza | Mono(Red) (1-bit) |
| kut gledanja | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvencija | 100Hz |
| vozač ic | COG Built-in SH1106G |
| signalno sučelje | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
