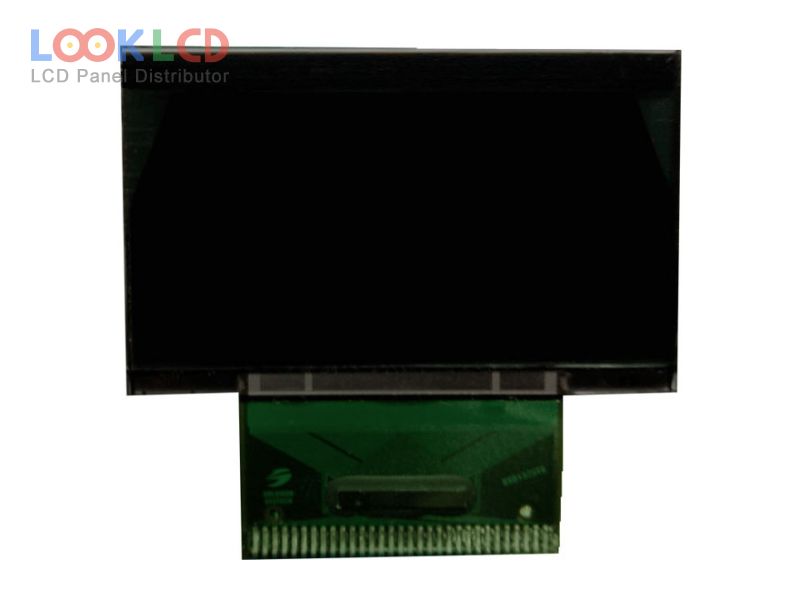

| Broj dijela | OEL9M0053-Y-E |
| Marka | Other |
| Veličina | 1.6 |
| Primjena | MPH |
| Rezolucija | 128×64 |
| Sastav | OLED |
| Svjetlina | 80 |
| CR | 10000:1 |
| Boje | Grayscale(Y) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI |
| marka panela | TRULY |
| panelni model | OEL9M0053-Y-E |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 1.6 inch |
| rezolucija | 128×64 |
| aktivno područje | 36.45×18.21 mm |
| obris | 46.83×28.77×2.2 mm |
| površinski | |
| svjetlina | 80 cd/m² (Typ.) |
| omjer kontrasta | 10000 : 1 (Min.) |
| boje prikaza | Grayscale(Y) (4-bit) |
| kut gledanja | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvencija | 100Hz |
| vozač ic | TAB Built-in SSD1325T6R1 |
| signalno sučelje | 8-bit 6800/8080 parallel, SPI, 31 pins |
| ulazni napon | 3.0/12.0V (Typ.)(VDD/VCC) |
| primjena | MPH |
