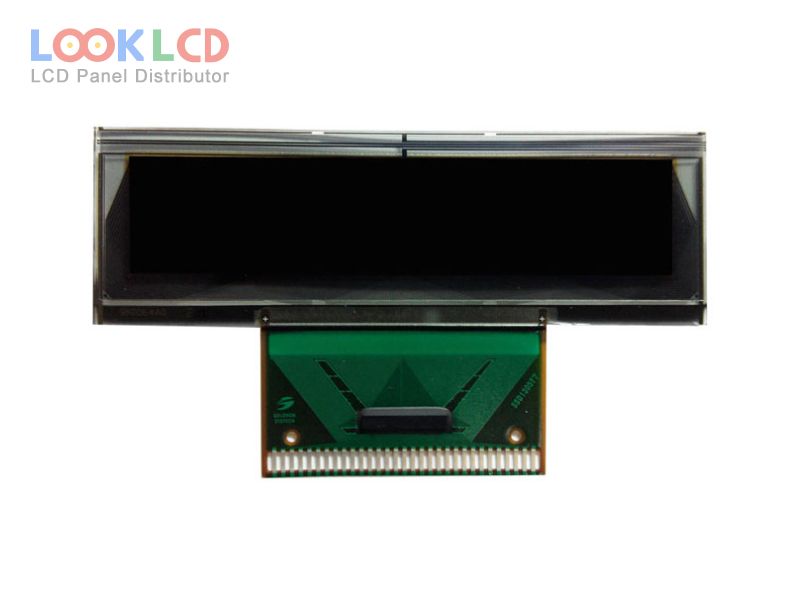

| Broj dijela | OEL9M0064-R-E |
| Marka | Other |
| Veličina | 2.0 |
| Primjena | IA |
| Rezolucija | 128×32 |
| Sastav | OLED |
| Svjetlina | |
| CR | 10000:1 |
| Boje | Mono(Red) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI/I²C |
| marka panela | TRULY |
| panelni model | OEL9M0064-R-E |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 2.0 inch |
| rezolucija | 128×32 |
| aktivno područje | 50.535×10.695 mm |
| obris | 59×18.86×1.6 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 10000 : 1 (Min.) |
| boje prikaza | Mono(Red) (1-bit) |
| kut gledanja | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 100Hz |
| vozač ic | TAB Built-in SSD1305T7R1 |
| signalno sučelje | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| primjena | IA |
