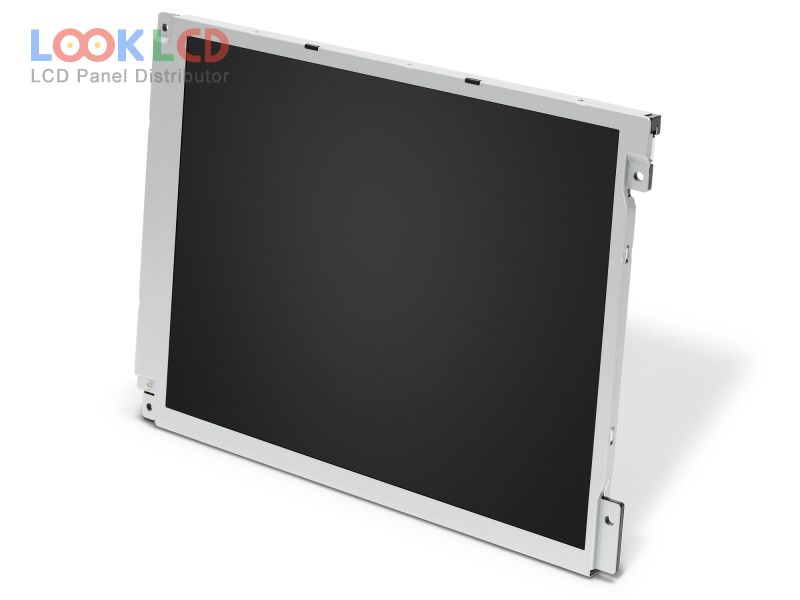

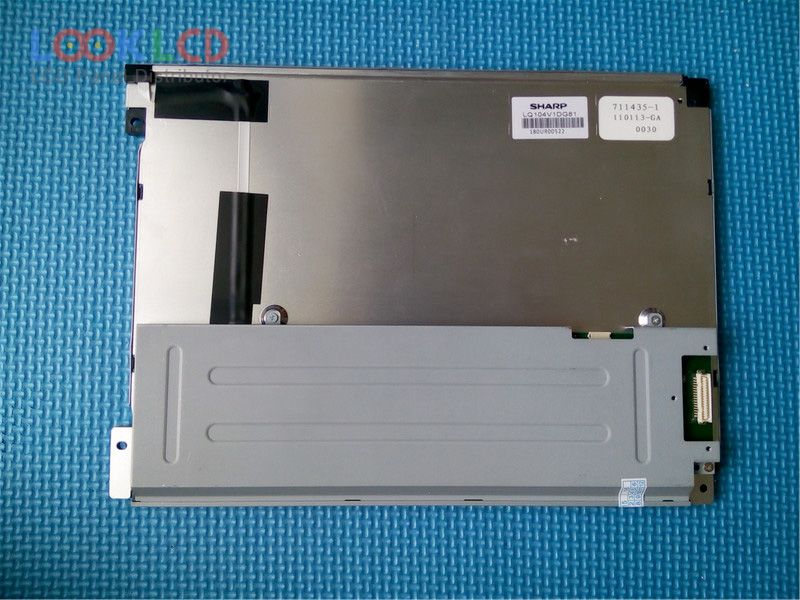

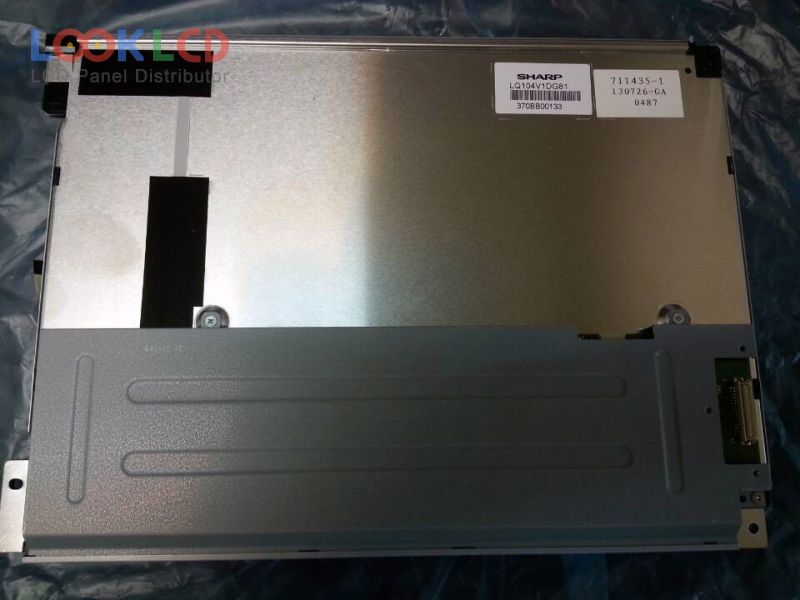

| Broj dijela | LQ104V1DG81 |
| Marka | SHARP |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ104V1DG81 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 211.2×158.4 mm |
| obris | 246.5×179.3×13 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/65/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | CMOS (1 ch, 6-bit), 31 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ104S1LG31 | SHARP | 10.4 | 800×600 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| LQ104S1LG61 | SHARP | 10.4 | 800×600 |
| LQ104V1DG51 | SHARP | 10.4 | 640×480 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| LQ104V1DG5B | SHARP | 10.4 | 640×480 |
| LQ104V1DG81 | SHARP | 10.4 | 640×480 |
| LQ104V1DW01 | SHARP | 10.4 | 640×480 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| AA150XN02 | Mitsubishi | 15.0 | 1024×768 |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| DLC0560AIG-3 | Other | 5.6 | 640×480 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| LB121S1-A2 | LG Display | 12.1 | 800×600 |
| LM057QB1T073 | SHARP | 5.7 | 320×240 |
| LM104VC1T51H | SHARP | 10.4 | 640×480 |
| LM104VC1T51R | SHARP | 10.4 | 640×480 |
| LT084AC27900 | TOSHIBA | 8.4 | 800×600 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
