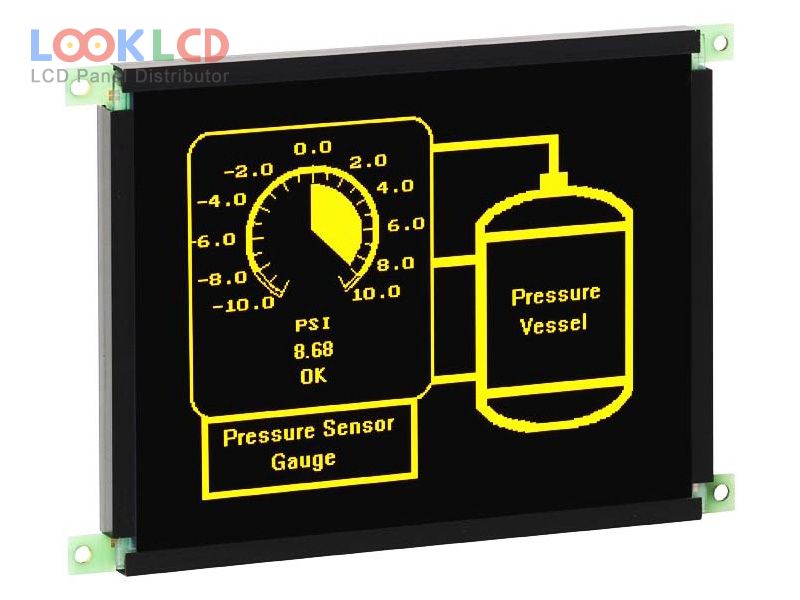

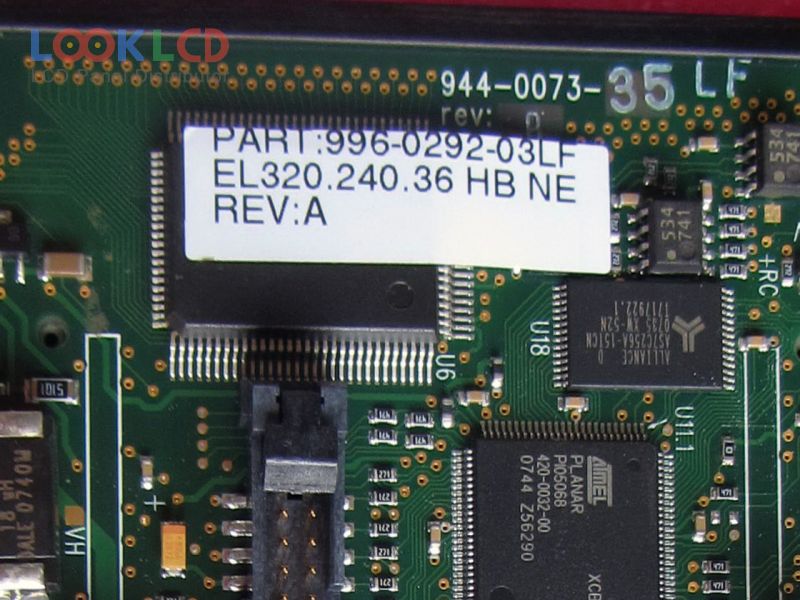

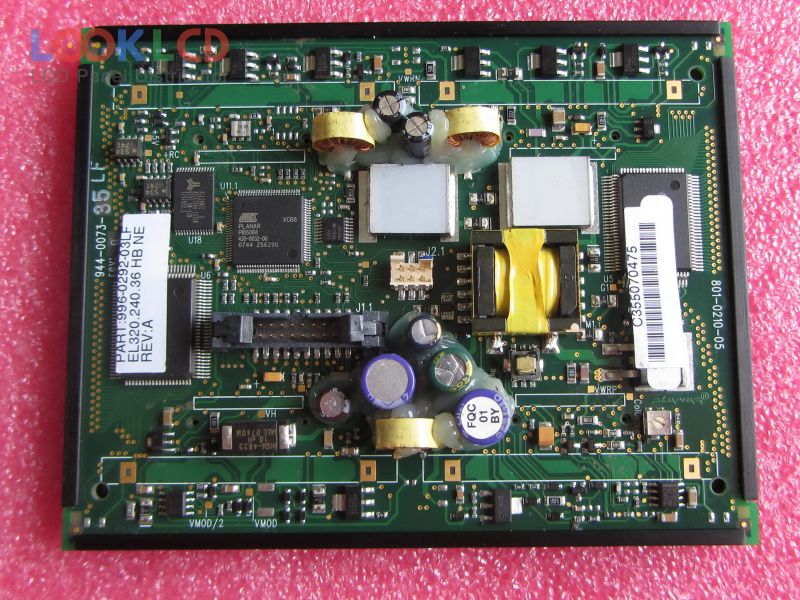

EL320.240.36 HB NE

EL320.240.36 HB NE
EL320.240.36 HB NE
EL320.240.36 HB NE
EL320.240.36 HB NE thumb EL320.240.36 HB NE thumb EL320.240.36 HB NE thumb
Marka
PLANAR
Veličina
5.7
Primjena
IA
Rezolucija
320×240
Sastav
EL
Svjetlina
150
CR
90:1
Boje
Mono(Yellow)
Pozadinsko osvjetljenje
self
Sučelje
Parallel Data
In Stock
300
Tehnički podaci

Broj dijela EL320.240.36 HB NE
MarkaPLANAR
Veličina5.7
PrimjenaIA
Rezolucija320×240
SastavEL
Svjetlina150
CR90:1
BojeMono(Yellow)
Pozadinsko osvjetljenjeself
SučeljeParallel Data
marka panelaPLANAR
panelni modelEL320.240.36 HB NE
vrsta panela EL , EL
veličina ploče5.7 inch
rezolucija320×240 , QVGA
aktivno područje115.1×86.3 mm
obris148.1×104.7 mm
površinski
svjetlina150 cd/m² (Typ.)
omjer kontrasta90 : 1 (Typ.)
boje prikazaMono(Yellow) (1-bit)
kut gledanja89/89/89/89 (Typ.)(L/R/U/D)
frekvencija120Hz
signalno sučeljeParallel Data (1ch, 4-bit), 26 pins
ulazni napon5/12V (Typ.)(VL/VH)
primjenaIA
Obiteljski model
EL320.240-FA3 Lumineq 4.9 320×240
EL320.240-FA3 CC Lumineq 4.9 320×240
EL320.240.36 ET Lumineq 5.7 320×240
EL320.240.36 ET CC Lumineq 5.7 320×240
EL320.240.36 HB Lumineq 5.7 320×240
EL320.240.36 HB CCB Lumineq 5.7 320×240
EL320.240.36 HB NE PLANAR 5.7 320×240
EL320.240.36 HB NE CC PLANAR 5.7 320×240
EL320.240.36 HB SE PLANAR 5.7 320×240
EL320.240.36 IN Lumineq 5.7 320×240
