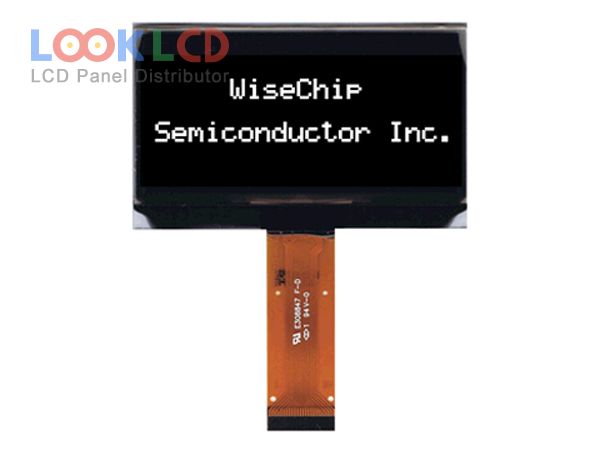

| Broj dijela | UG-2864ASWPG01 |
| Marka | WiseChip |
| Veličina | 2.4 |
| Primjena | IA |
| Rezolucija | 128×64 |
| Sastav | OLED |
| Svjetlina | 80 |
| CR | |
| Boje | Mono(White) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI/I²C |
| marka panela | WiseChip |
| panelni model | UG-2864ASWPG01 |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 2.4 inch |
| rezolucija | 128×64 |
| aktivno područje | 55.01×27.49 mm |
| obris | 60.5×37 mm |
| površinski | |
| svjetlina | 80 cd/m² (Typ.) |
| omjer kontrasta | |
| boje prikaza | Mono(White) |
| kut gledanja | |
| vozač ic | Built-in SSD1309 |
| signalno sučelje | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| primjena | IA |
