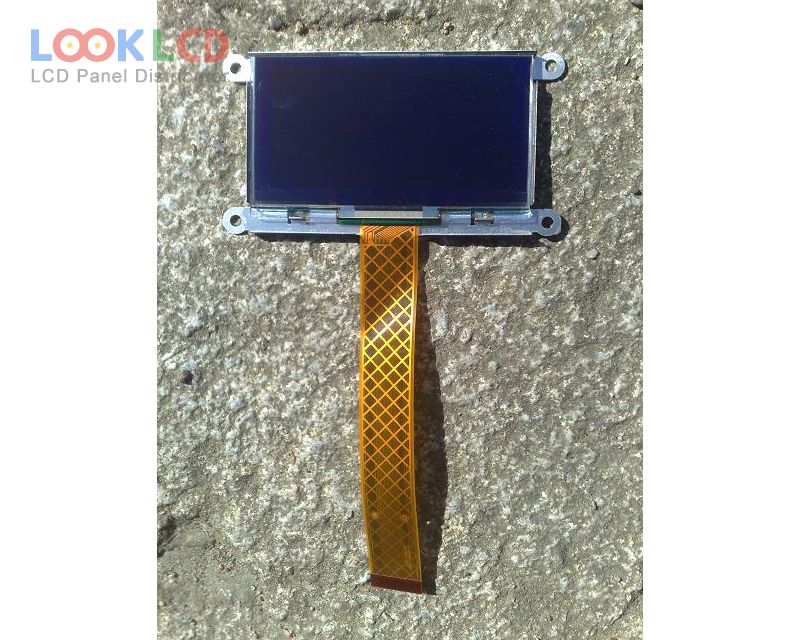

| Broj dijela | UG-2864ASYDT01 |
| Marka | WiseChip |
| Veličina | 2.7 |
| Primjena | IA |
| Rezolucija | 128×64 |
| Sastav | OLED |
| Svjetlina | 100 |
| CR | 1000:1 |
| Boje | Mono(Yellow) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI |
| marka panela | Univision |
| panelni model | UG-2864ASYDT01 |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 2.7 inch |
| rezolucija | 128×64 |
| aktivno područje | 61.41×30.69 mm |
| obris | 73×41.86×3.7 mm |
| površinski | |
| svjetlina | 100 cd/m² (Typ.) |
| omjer kontrasta | 1000 : 1 (Min.) |
| boje prikaza | Mono(Yellow) (1-bit) |
| kut gledanja | 80/80/80/80 (Min.)(L/R/U/D) |
| vozač ic | TAB Built-in SSD1325 |
| signalno sučelje | 8-bit 6800/8080 parallel, 4-wire SPI, 30 pins |
| ulazni napon | 2.8/15V (Typ.)(VDD/VCC) |
| rohs: | |
| primjena | IA |
