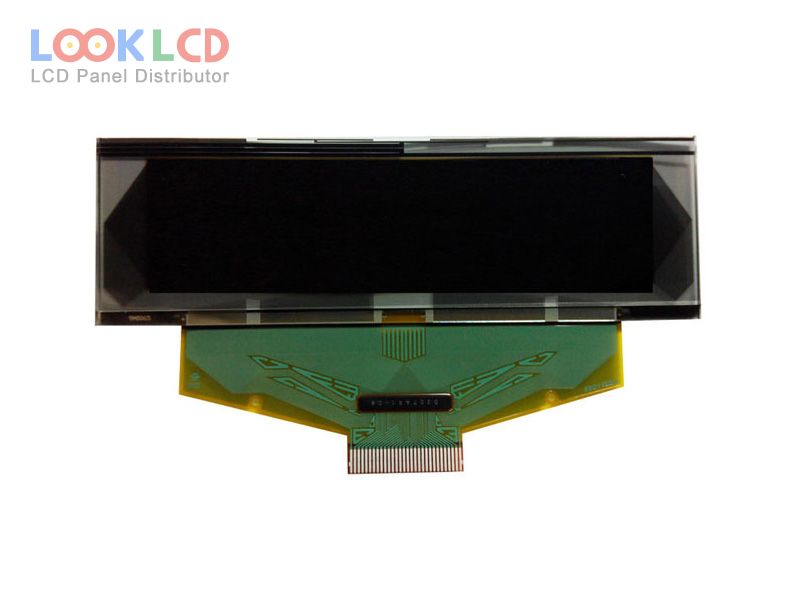

| Broj dijela | OEL9M0065-Y-E |
| Marka | Other |
| Veličina | 2.7 |
| Primjena | IA |
| Rezolucija | 256×64 |
| Sastav | OLED |
| Svjetlina | |
| CR | 10000:1 |
| Boje | Grayscale(Y) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI |
| marka panela | TRULY |
| panelni model | OEL9M0065-Y-E |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 2.7 inch |
| rezolucija | 256×64 |
| aktivno područje | 66.53×16.61 mm |
| obris | 82×25.5×1.6 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 10000 : 1 (Min.) |
| boje prikaza | Grayscale(Y) (4-bit) |
| kut gledanja | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 100Hz |
| vozač ic | COF Built-in SSD1322UR1 |
| signalno sučelje | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| primjena | IA |
