Broj dijela | NL6448BC18-01F |
Marka | NLT |
Veličina | 5.7 |
Primjena | IA |
Rezolucija | 640×480 |
Sastav | LCM |
Svjetlina | 800 |
CR | 850:1 |
Boje | 262K |
Pozadinsko osvjetljenje | WLED |
Sučelje | TTL |
marka panela | NEC |

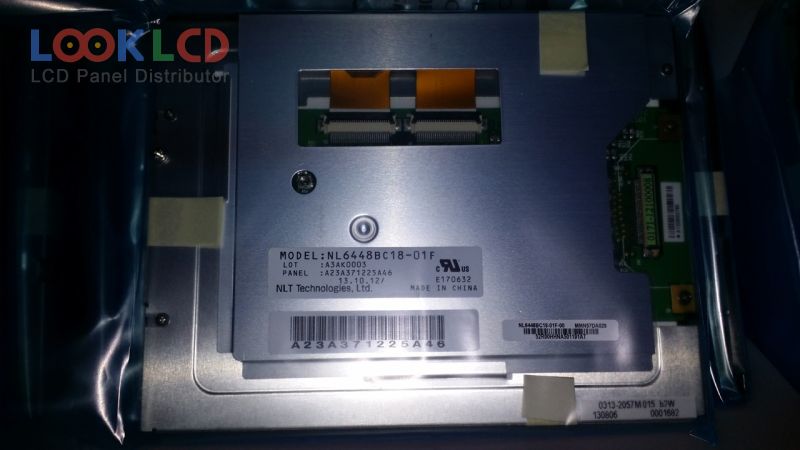

panelni model | NL6448BC18-01F 1 Compatible model |
vrsta panela | a-Si TFT-LCD , LCM |
veličina ploče | 5.7 inch |
rezolucija | 640(RGB)×480 , VGA |
način prikaza | TN, Normally White, Transmissive |
aktivno područje | 116.16×87.12 mm |
obris | 135×104.6×10.9 mm |
površinski | Clear, Hard coating (3H) |
svjetlina | 800 cd/m² (Typ.) |
omjer kontrasta | 850:1 (Typ.) |
boje prikaza | 262K (6-bit), CIE193160% |
vrijeme odziva | 3/15 (Typ.)(Tr/Td) |
kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
frekvencija | 60Hz |
tip svjetiljke | 9S2P×2CNWLEDWithout Driver |
signalno sučelje | CMOS (1 ch, 6-bit), 33 pins |
ulazni napon | 3.3V (Typ.) |
primjena | IA |
