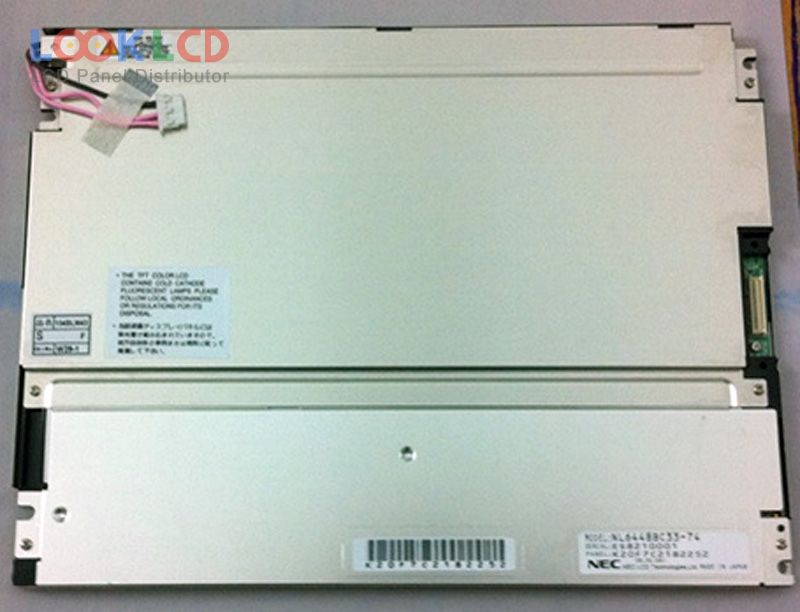

| Broj dijela | NL6448BC33-74 |
| Marka | NLT |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | NEC |
| panelni model | NL6448BC33-74 3 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | SA-SFT, Normally Black, Transmissive |
| aktivno područje | 211.2×158.4 mm |
| obris | 243×185.1×11 mm |
| površinski | Clear, Hard coating (3H) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 14/16 (Typ.)(Tr/Td) |
| kut gledanja | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | CMOS (1 ch, 6-bit), 31 pins |
| ulazni napon | 3.3/5.0V (Typ.) |
| primjena | IA |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC20-08 | NLT | 6.5 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL6448BC26-09C | NLT | 8.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-59 | NLT | 10.4 | 640×480 |
| NL6448BC33-64R | NLT | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AA121XK01 | Mitsubishi | 12.1 | 1024×768 |
| DMF50773NF-SLY | Kyocera | 5.4 | 240×128 |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| G085VW01 V3 | AUO | 8.5 | 800×480 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G150XTN02.0 | AUO | 15.0 | 1024×768 |
| LQ201U1LW32 | SHARP | 20.1 | 1600×1200 |
| MD480T640PG4 | Panasonic | 11.3 | 640×480 |
| TX23D86VM0BAA | KOE | 9.0 | 1280×768 |
| UG-9616TSWBG01 | WiseChip | 0.84 | 96×16 |
