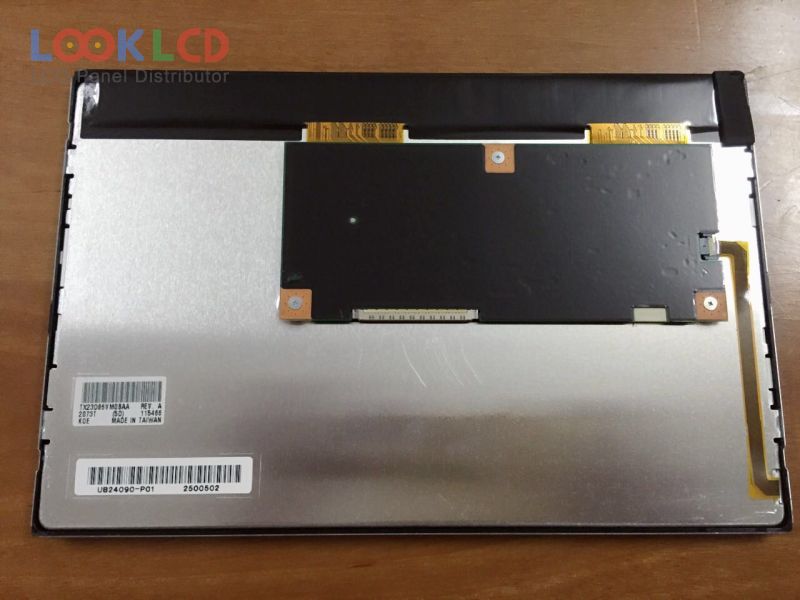

| Broj dijela | TX23D86VM0BAA |
| Marka | KOE |
| Veličina | 9.0 |
| Primjena | IA |
| Rezolucija | 1280×768 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | HITACHI |
| panelni model | TX23D86VM0BAA |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 9.0 inch |
| rezolucija | 1280(RGB)×768 , WXGA |
| način prikaza | IPS NP, Normally Black, Transmissive |
| aktivno područje | 193.92×116.352 mm |
| obris | 216×142 mm |
| površinski | |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193172% |
| vrijeme odziva | 22 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 8-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
