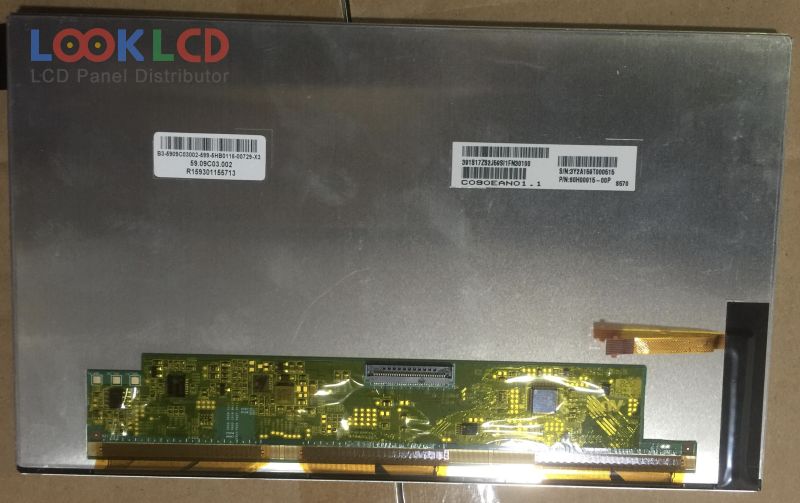

| Broj dijela | C090EAN01.1 |
| Marka | AUO |
| Veličina | 9.0 |
| Primjena | CNS |
| Rezolucija | 1280×720 |
| Sastav | LCM |
| Svjetlina | 680 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | C090EAN01.1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 9.0 inch |
| rezolucija | 1280(RGB)×720 , WXGA |
| način prikaza | AHVA, Normally Black, Transmissive |
| aktivno područje | 198.72×111.78 mm |
| obris | 210×126.8 mm |
| površinski | Antiglare |
| svjetlina | 680 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 15/15 (Max.)(Tr/Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S3PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3/3.3V (Typ.)(VDD/VDDA) |
| primjena | CNS |
