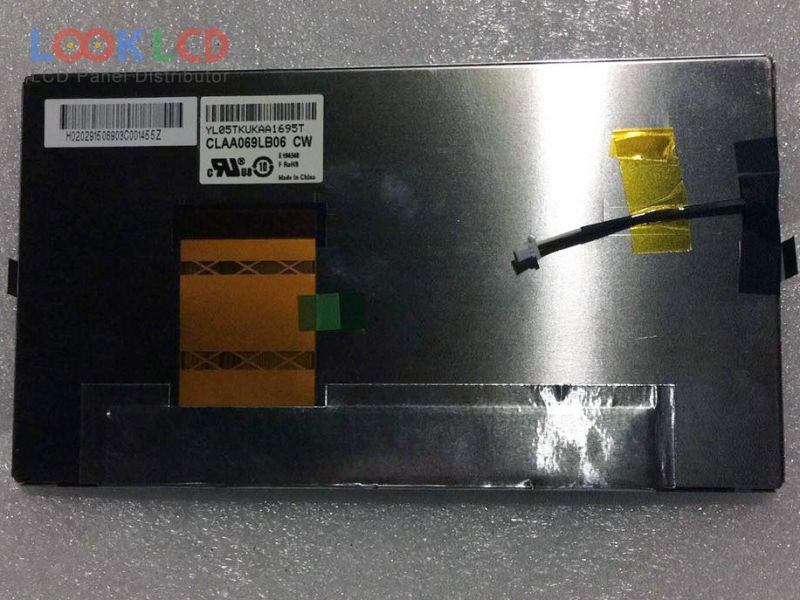

| Broj dijela | CLAA069LB06 CW |
| Marka | CPT |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | CPT |
| panelni model | CLAA069LB06 CW |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 156.6×81.6 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | |
| kut gledanja | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLED |
| signalno sučelje | TTL (1 ch, 6-bit) |
| primjena | CNS |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| LTA070B2C0F | TOSHIBA | 7.0 |
| AV128HDM-NW0 | BOE | 12.8 | 1280×720 |
| C065GW04 V2 | AUO | 6.5 | 400×240 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| PA080XS4 | E Ink | 7.9 | 480×468 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
| ZJ070NA-01P | Innolux | 7.0 | 1024×600 |
