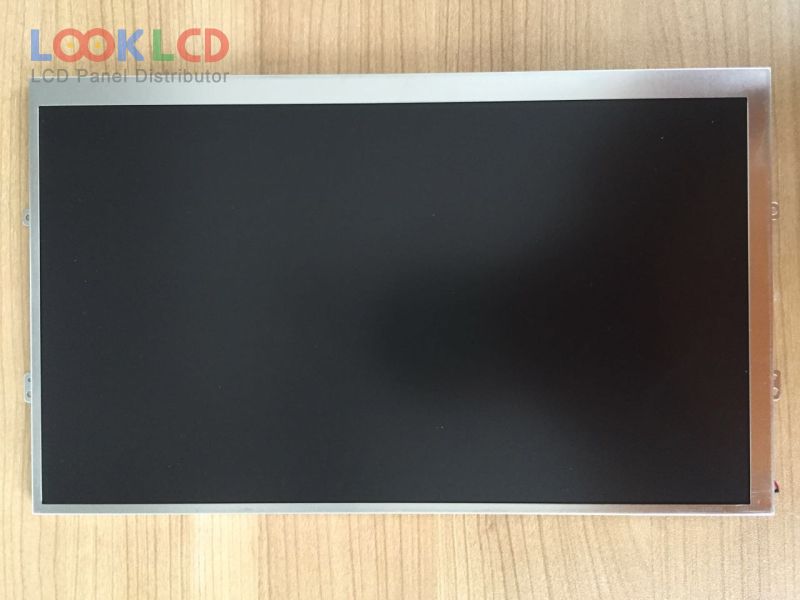

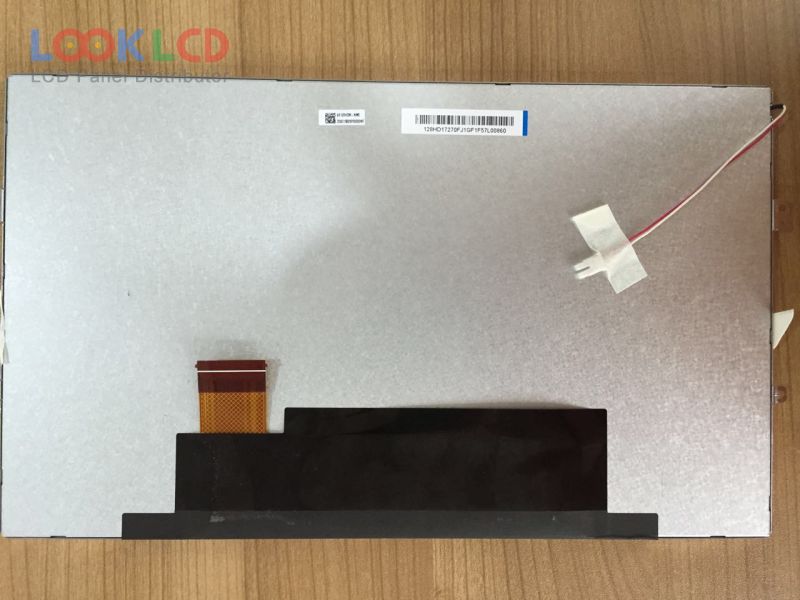

| Broj dijela | AV128HDM-NW0 |
| Marka | BOE |
| Veličina | 12.8 |
| Primjena | CNS |
| Rezolucija | 1280×720 |
| Sastav | LCM |
| Svjetlina | 500 |
| CR | 900:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | BOE |
| panelni model | AV128HDM-NW0 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.8 inch |
| rezolucija | 1280(RGB)×720 , WXGA |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno područje | 283.2×159.3 mm |
| obris | 300.8×179.5×8 mm |
| površinski | |
| svjetlina | 500 cd/m² (Typ.) |
| omjer kontrasta | 900:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193172% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4S10PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 50 pins |
| ulazni napon | 3.3/11.5/22/-9V (Typ.)(VCC/AVDD/VGH/VGL) |
| primjena | CNS |
| AV128HDM-NW0 | BOE | 12.8 | 1280×720 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
