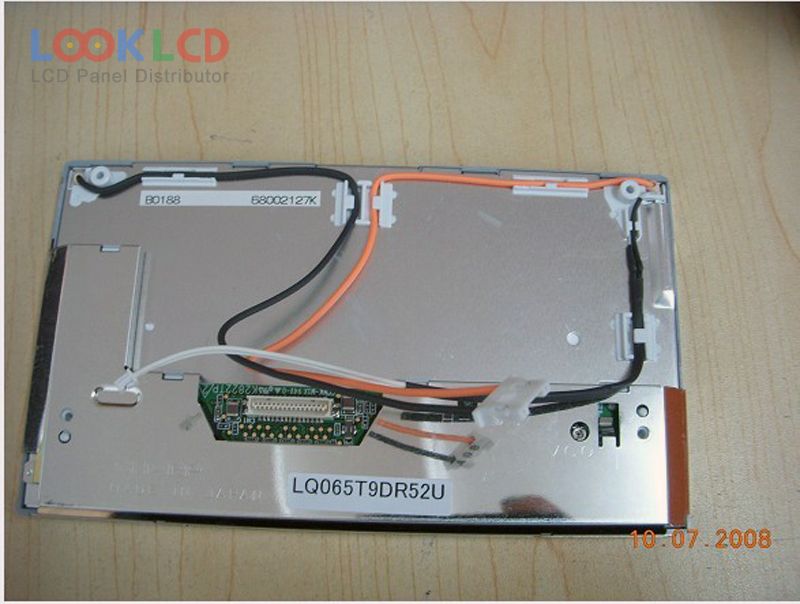

| Broj dijela | LQ065T9DR52U |
| Marka | SHARP |
| Veličina | 6.5 |
| Primjena | CNS |
| Rezolucija | 400×240 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 60:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ065T9DR52U |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 6.5 inch |
| rezolucija | 400(RGB)×240 , WQVGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno područje | 143.4×79.326 mm |
| obris | 155×89.2 mm |
| površinski | Antiglare, Antireflection |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 60:1 (Min.)(Transmissive)5:1 (Typ.)(Reflective) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 10/25 (Typ.)(Tr/Td) |
| kut gledanja | 50/50/40/45 (Typ.)(CR≥5)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 31 pins |
| ulazni napon | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| primjena | CNS |
