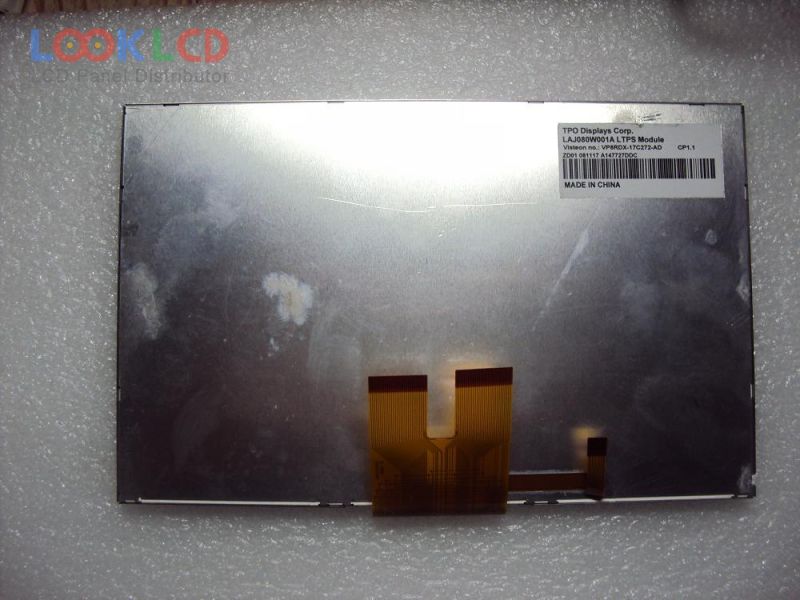

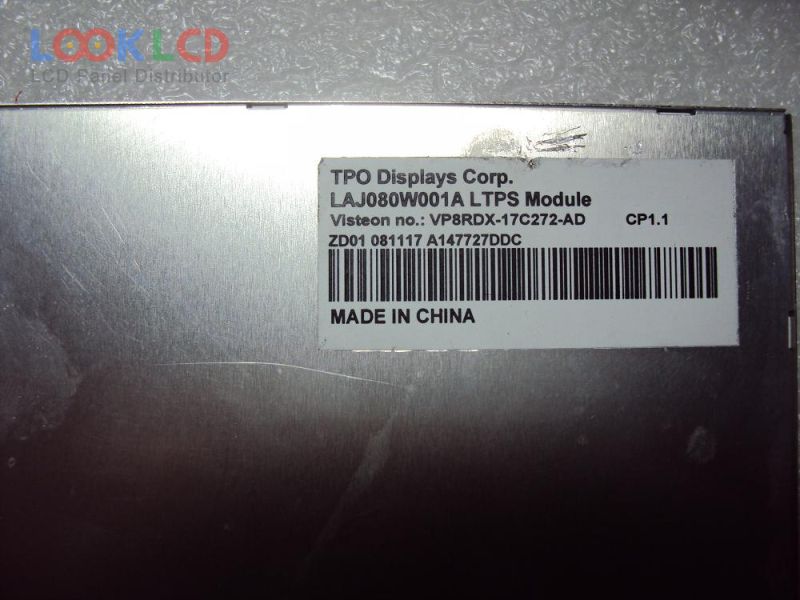

| Broj dijela | LAJ080W001A |
| Marka | TPO |
| Veličina | 8.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | TPO |
| panelni model | LAJ080W001A |
| vrsta panela | LTPS TFT-LCD , LCM |
| veličina ploče | 8.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 174×104.4 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 4.5/7.5 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 60 pins |
| primjena | CNS |
