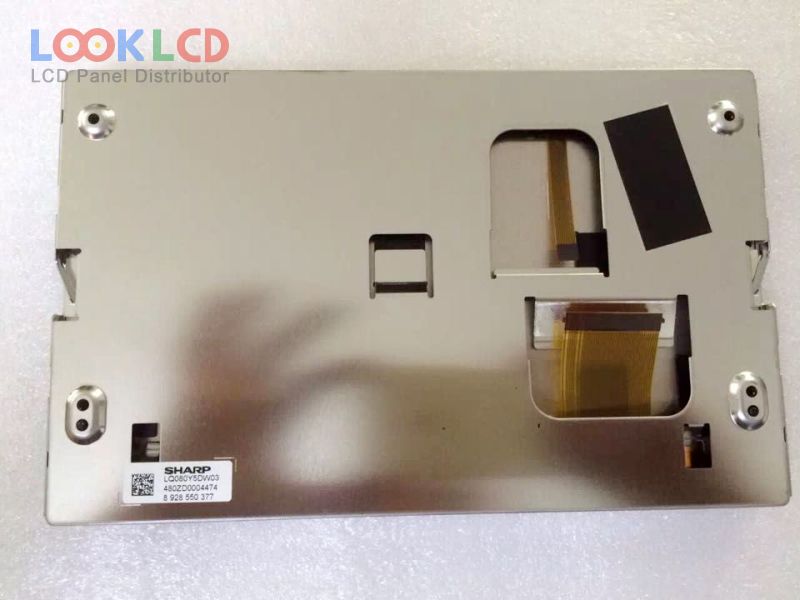

| Broj dijela | LQ080Y5DG03 |
| Marka | SHARP |
| Veličina | 8.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 540 |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ080Y5DG03 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 8.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 174×104.4 mm |
| obris | 190×120 mm |
| površinski | |
| svjetlina | 540 cd/m² (Typ.) |
| omjer kontrasta | |
| boje prikaza | 262K (6-bit), CIE193165% |
| vrijeme odziva | |
| kut gledanja | |
| tip svjetiljke | WLED |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) |
| primjena | CNS |
