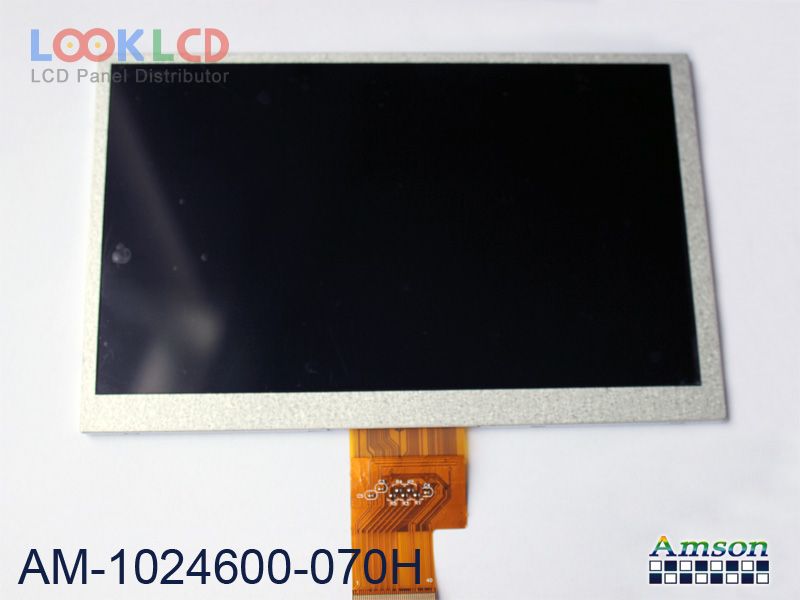

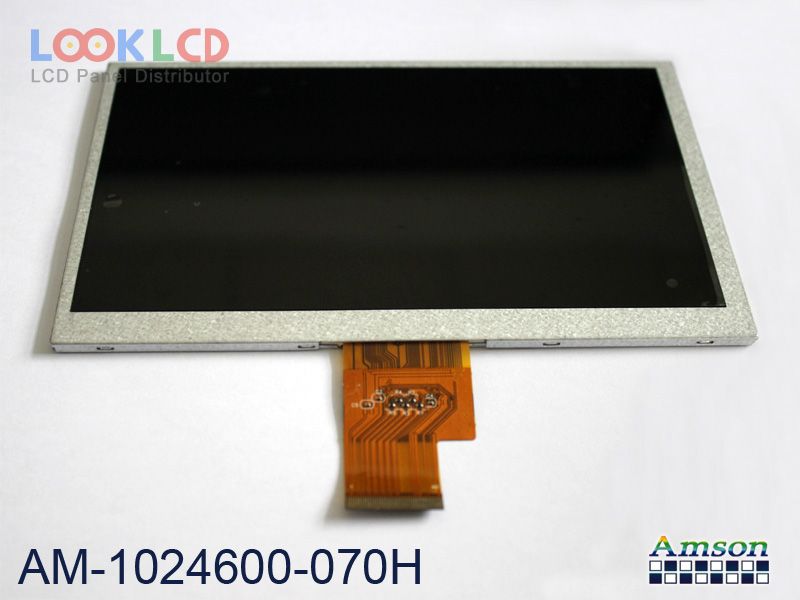

| Broj dijela | AM-1024600-070H |
| Marka | Other |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 1024×600 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | Amson |
| panelni model | AM-1024600-070H |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 153.6×90 mm |
| obris | 165.75×105.39×3.7 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Dithering) |
| vrijeme odziva | |
| kut gledanja | |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
