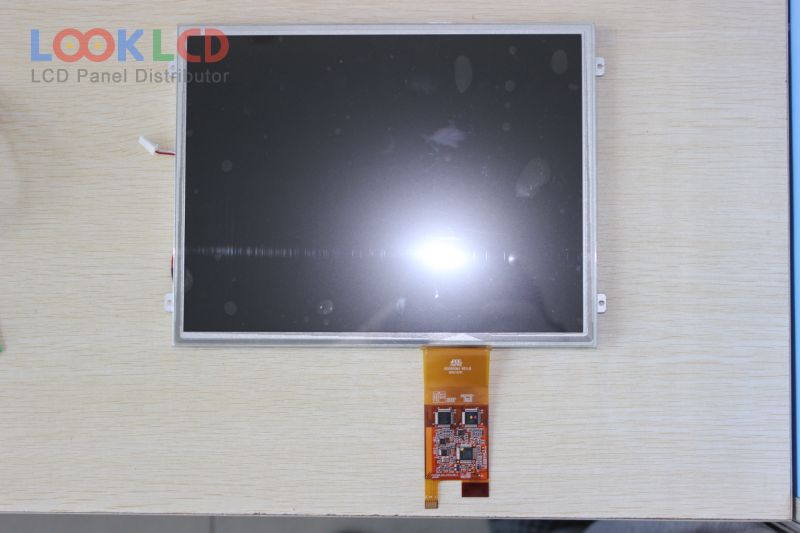

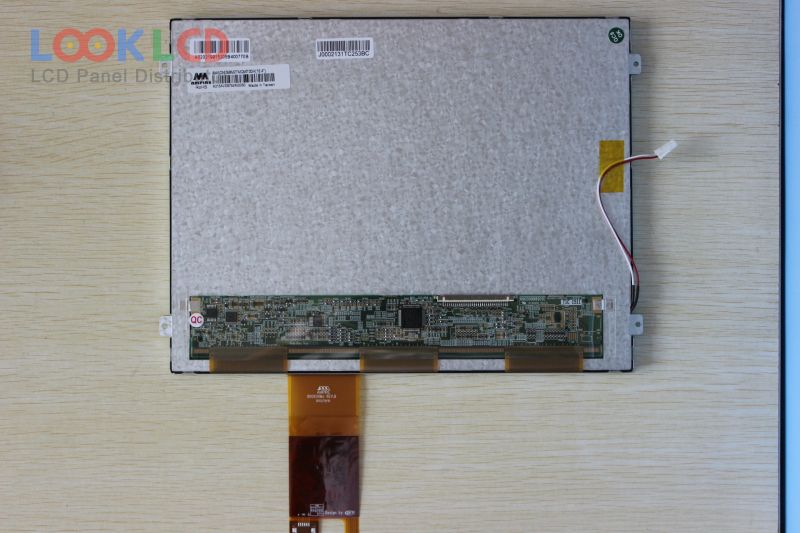

| Broj dijela | AM-1024768M2TMQW-T00H |
| Marka | AMPIRE |
| Veličina | 9.7 |
| Primjena | IA |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 425 |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AMPIRE |
| panelni model | AM-1024768M2TMQW-T00H |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 9.7 inch |
| rezolucija | 1024(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 211.2×127.7 mm |
| obris | 236×175 mm |
| površinski | |
| svjetlina | 425 cd/m² (Typ.) |
| omjer kontrasta | |
| boje prikaza | 262K (6-bit), CIE193147% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 75/75/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3S13PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
