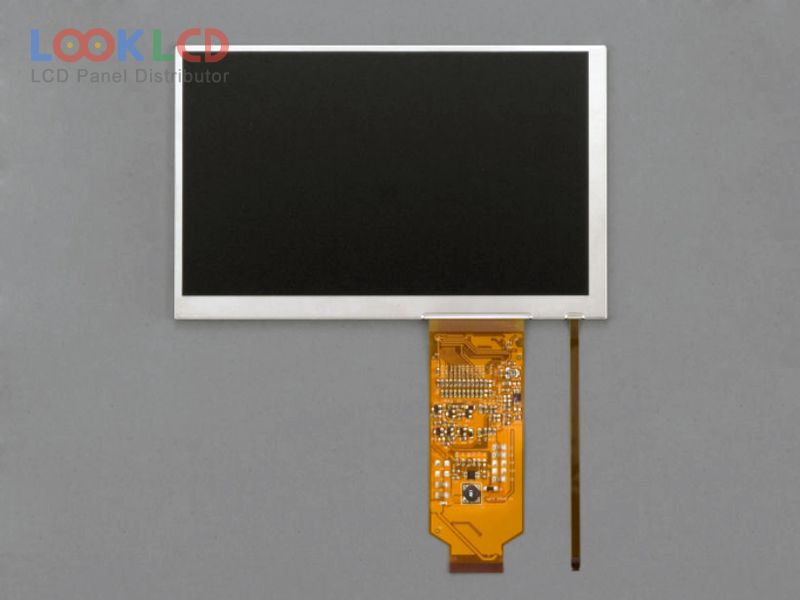

| Broj dijela | 70WVW1A |
| Marka | SII |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 400:1 |
| Boje | 16.2M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SII |
| panelni model | 70WVW1A |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| obris | 165×105.8×3.65 mm |
| površinski | Antiglare |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 16.2M (6-bit + Dithering), CIE193145% |
| vrijeme odziva | 5/11 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 8S3PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
