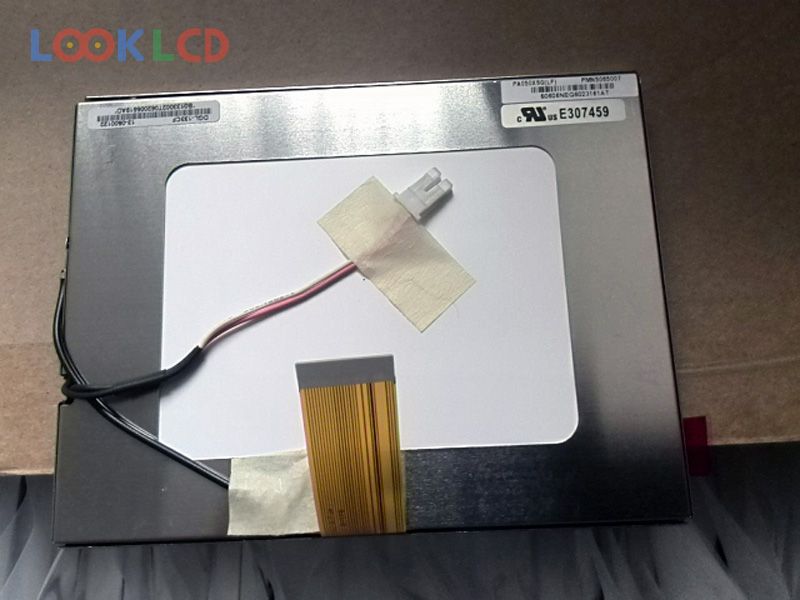

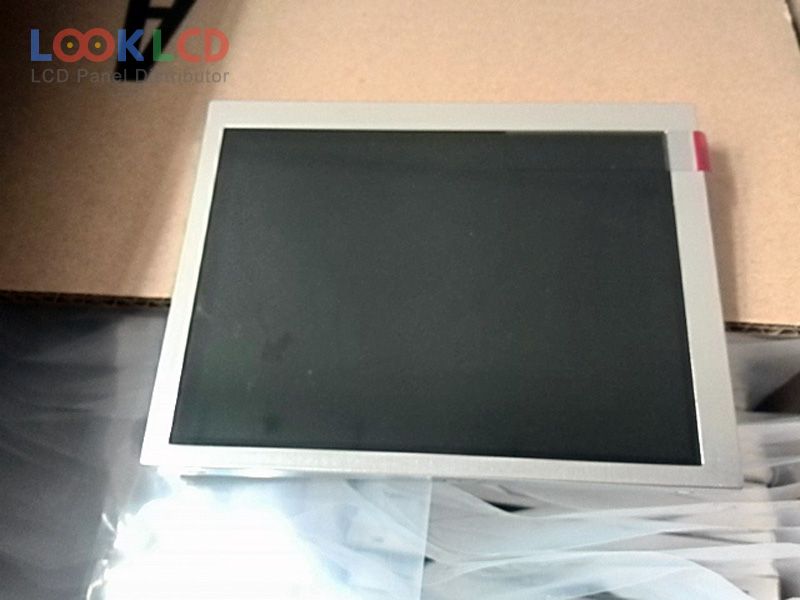

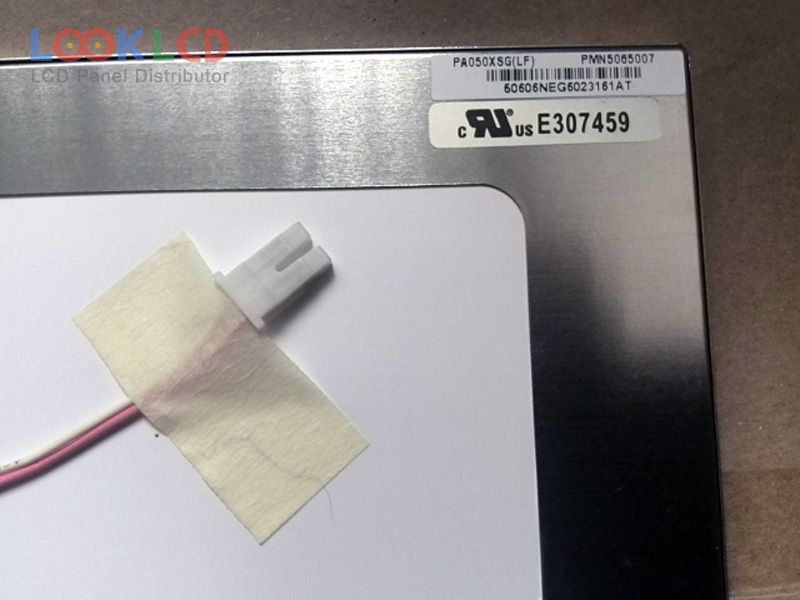

| Broj dijela | PA050XSG |
| Marka | E Ink |
| Veličina | 5.0 |
| Primjena | CNS |
| Rezolucija | 320×234 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 400:1 |
| Boje | |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Analog |
| marka panela | PVI |
| panelni model | PA050XSG |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.0 inch |
| rezolucija | 320(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 102.72×74.53 mm |
| obris | 119.3×91.4×7.8 mm |
| površinski | Antiglare |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | |
| vrijeme odziva | 15/30 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | TFT Specific Analog RGB, 30 pins |
| ulazni napon | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL) |
| primjena | CNS |
| PA050DS2T1 | E Ink | 5.0 | 320×234 |
| PA050DS4 | E Ink | 5.0 | 320×234 |
| PA050DS7 | E Ink | 5.0 | 320×234 |
| PA050DS7N1 | E Ink | 5.0 | 320×234 |
| PA050DT2 | E Ink | 5.0 | 320×234 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| PA050XSG | E Ink | 5.0 | 320×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| PA050XU4 | E Ink | 5.0 | 320×234 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| EDTCB18QEF | TOSHIBA | 7.0 | 800×480 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| LA060N01-SD01 | LG Display | 6.0 | 720×272 |
| LA070WV4-SD03 | LG Display | 7.0 | 800×480 |
| LQ042T5DZ01A | SHARP | 4.2 | 480×272 |
| LQ065Y5DZ01 | SHARP | 6.5 | 800×480 |
| LQ080Y5DG02 | SHARP | 8.0 | 800×480 |
| PM070WT2 | E Ink | 7.0 | 800×480 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
