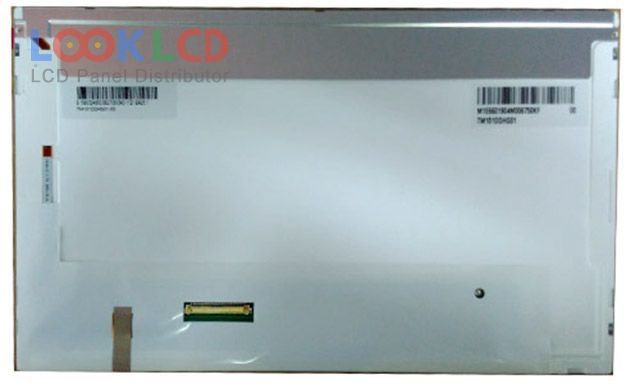

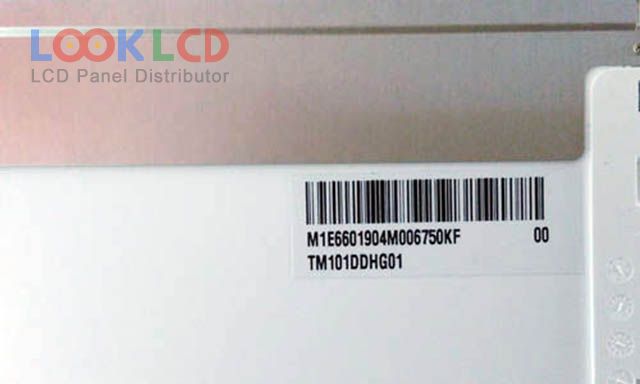

| Broj dijela | TM101DDHG01 |
| Marka | Tianma |
| Veličina | 10.1 |
| Primjena | CNS |
| Rezolucija | 1024×600 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 800:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | TIANMA |
| panelni model | TM101DDHG01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.1 inch |
| rezolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 222.72×125.28 mm |
| obris | 235×143×5.1 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193147% |
| vrijeme odziva | 7/9 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/75/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
| AM-1024600L3TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| EJ101IA-02A | Innolux | 10.1 | 1280×800 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| LP101WH4-SLAF | LG Display | 10.1 | 1366×768 |
| M101GWN9 R2 | IVO | 10.1 | 1024×600 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
| TM101JDHP01 | Tianma | 10.1 | 1280×800 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| C080VW03 V0 | AUO | 8.0 | 800×480 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070NJ05CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| LA080WV1-TD01 | LG Display | 8.0 | 800×480 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LS800JT9001 | Innolux | 8.0 | 800×600 |
