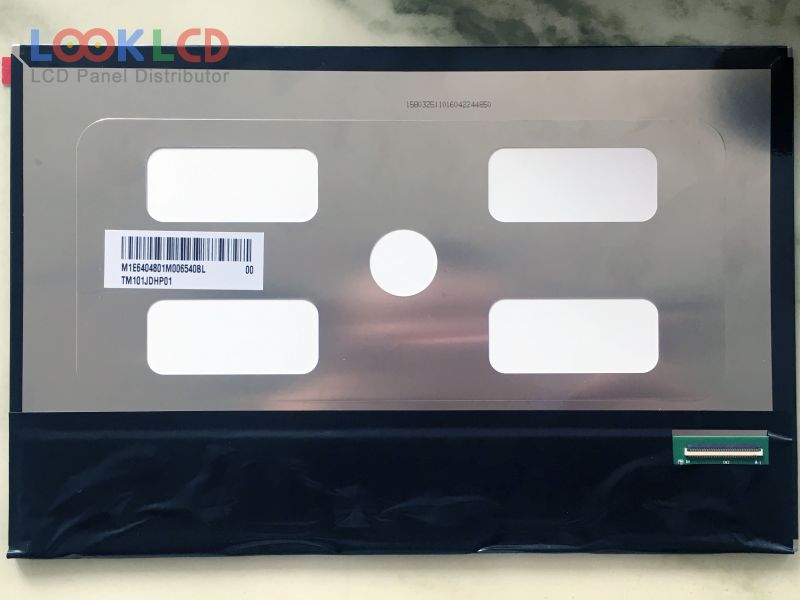

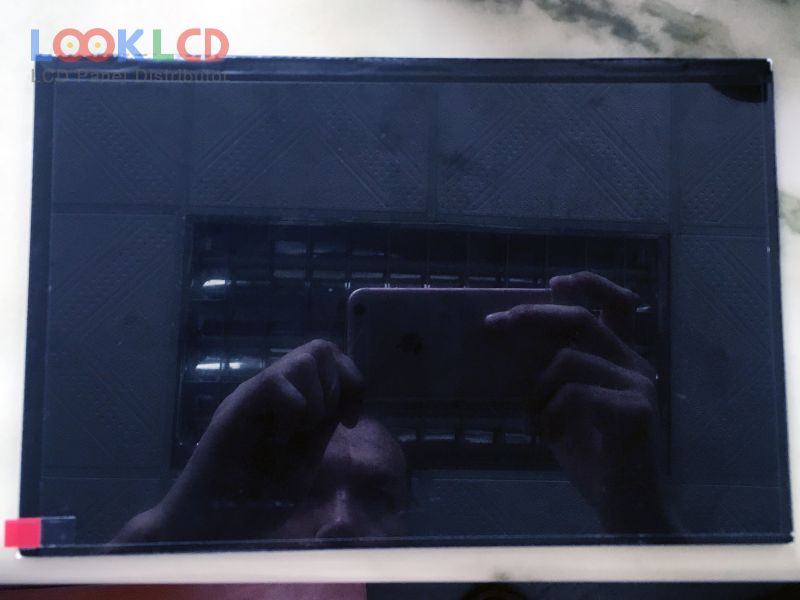

| Broj dijela | TM101JDHP01 |
| Marka | Tianma |
| Veličina | 10.1 |
| Primjena | IA |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | TIANMA |
| panelni model | TM101JDHP01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | SFT, Normally Black, Transmissive |
| aktivno područje | 216.96×135.6 mm |
| obris | 229.46×149.1×4.3 mm |
| površinski | Hard coating |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193150% |
| vrijeme odziva | 10/15 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3S11PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| primjena | IA |
