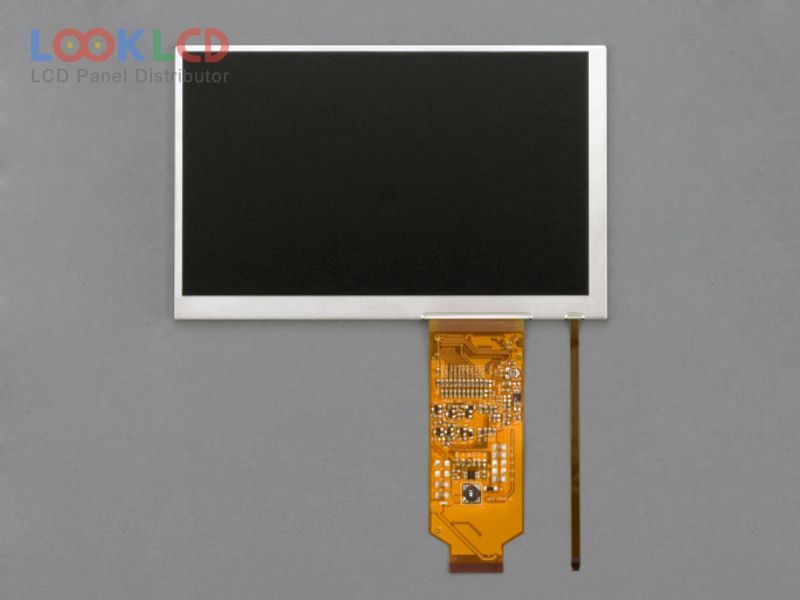

| Broj dijela | 70WVW3A |
| Marka | SII |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SII |
| panelni model | 70WVW3A |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| obris | 165×105.8×3.65 mm |
| površinski | Antiglare |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 5/11 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 8S3PWLED |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
| 70WVW1A | SII | 7.0 | 800×480 |
| 70WVW1T | SII | 7.0 | 800×480 |
| 70WVW2A | SII | 7.0 | 800×480 |
| 70WVW2T | SII | 7.0 | 800×480 |
| 70WVW3A | SII | 7.0 | 800×480 |
| 70WVW3T | SII | 7.0 | 800×480 |
| 70WVW4A | SII | 7.0 | 800×480 |
| 70WVW5A | SII | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| AM-1024600KTMQW-04H | AMPIRE | 7.0 | 1024×600 |
| C043FW01 V0 | AUO | 4.3 | 480×234 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| DLC1040ABG-T-2 | Other | 10.4 | 800×600 |
| G070Y1-T01 | Innolux | 7.0 | 800×480 |
| LA070WV6-SL02 | LG Display | 7.0 | 800×480 |
| LAJ084T001A | TPO | 8.4 | 800×600 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
