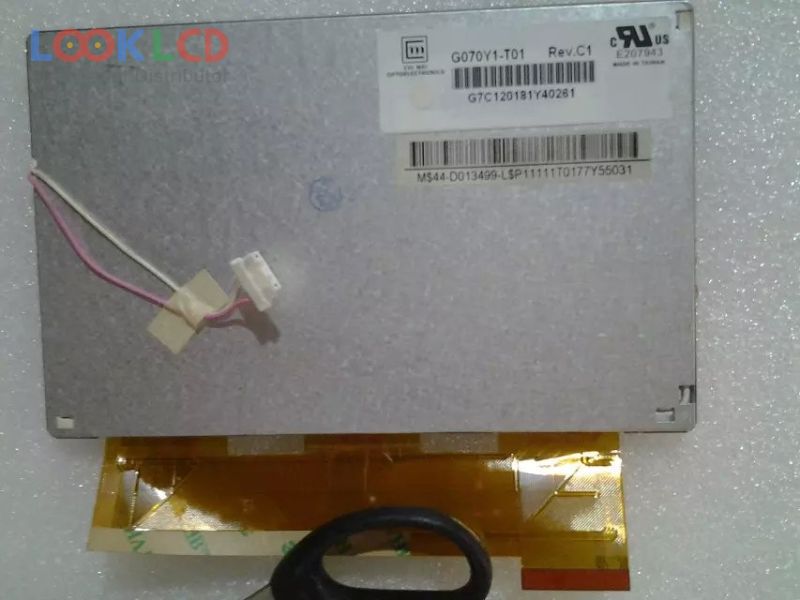

| Broj dijela | G070Y1-T01 |
| Marka | Innolux |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | CMO |
| panelni model | G070Y1-T01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| obris | 165×104×5.8 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 5/11 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 50 pins |
| ulazni napon | 3.3/11.6/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| primjena | CNS |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| G070Y1-T01 | Innolux | 7.0 | 800×480 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| G070Y2-T02 | Innolux | 7.0 | 800×480 |
| G070Y3-T01 | Innolux | 7.0 | 800×480 |
| LMS700JF04-0 | Samsung | 7.0 | 1024×600 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| 70WVW2T | SII | 7.0 | 800×480 |
| C070VAN01.1 | AUO | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| LQ070Y5DG12 | SHARP | 7.0 | 800×480 |
| LTA061B2E0F | TOSHIBA | 6.1 | |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| TFD65W46 | TOSHIBA | 6.5 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| YX070DK02 | SEBO | 7.0 | 800×480 |
| ZJ080NA-08A | Innolux | 8.0 | 1024×600 |
