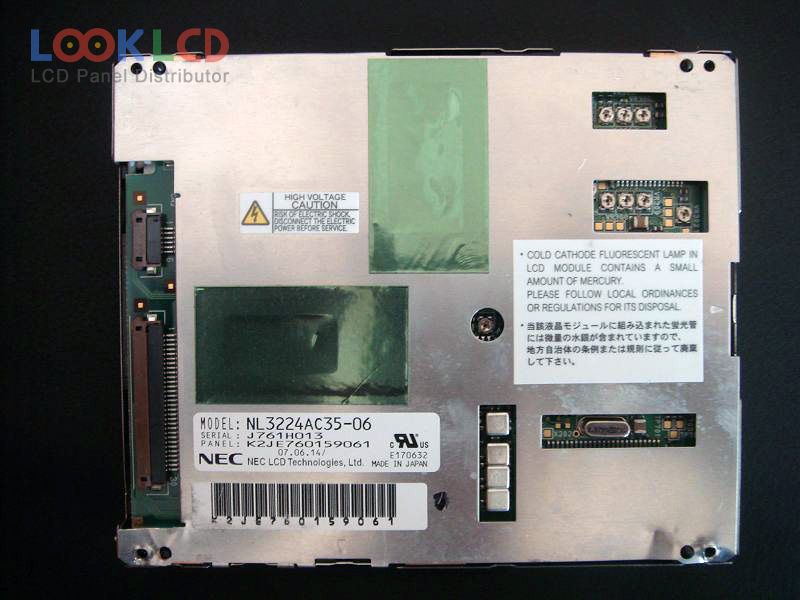

| Broj dijela | NL3224AC35-06 |
| Marka | NLT |
| Veličina | 5.5 |
| Primjena | CNS |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 85:1 |
| Boje | Full color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Analog |
| marka panela | NEC |
| panelni model | NL3224AC35-06 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 111.36×83.52 mm |
| obris | 134×110 mm |
| površinski | Antiglare, Hard coating (2H) |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 85:1 (Typ.) |
| boje prikaza | Full color , CIE193150% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 50/50/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | Analog RGB + Composite Video, 30 pins |
| ulazni napon | 9.5V (Typ.) |
| primjena | CNS |
| BS055FHE-N30-6Q00 | BOE | 5.5 | 1080×1920 |
| LM32C041 | SHARP | 5.5 | 320×240 |
| LTA055B0R0A | TOSHIBA | 5.5 | 480×234 |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| NL3224AC35-05 | NLT | 5.5 | 320×240 |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| NL3224AC35-10 | NLT | 5.5 | 320×240 |
| NL3224BC35-20 | NLT | 5.5 | 320×240 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| NL3224BC35-22 | NLT | 5.5 | 320×240 |
| A061FW01 V0 | AUO | 6.1 | 480×234 |
| C070VW04 VB | AUO | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| G080Y1-T01 | Innolux | 8.0 | 800×480 |
| LB048Q01-TD01 | LG Display | 4.8 | 240×257 |
| LQ058T5DR02 | SHARP | 5.8 | 480×272 |
| LQ065T9BR54U | SHARP | 6.5 | 400×240 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
