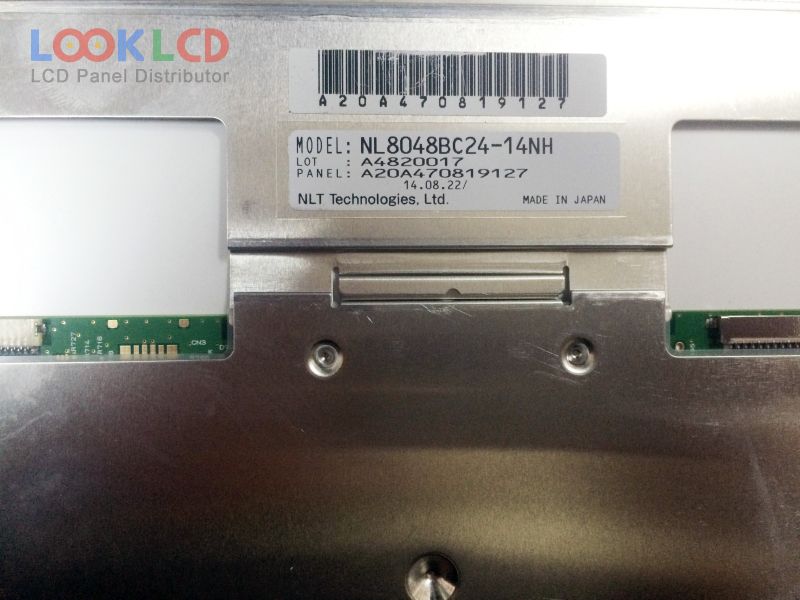

| Broj dijela | NL8048BC24-14NH |
| Marka | NLT |
| Veličina | 9.0 |
| Primjena | IA |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | NEC |
| panelni model | NL8048BC24-14NH |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 9.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | UA-SFT, Normally Black, Transmissive |
| aktivno područje | 196.8×118.08 mm |
| površinski | Anti Fingerprint + Antiglare |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| vrijeme odziva | |
| kut gledanja | |
| frekvencija | 60Hz |
| tip svjetiljke | WLED |
| signalno sučelje | LVDS (1 ch, 6/8-bit) |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
