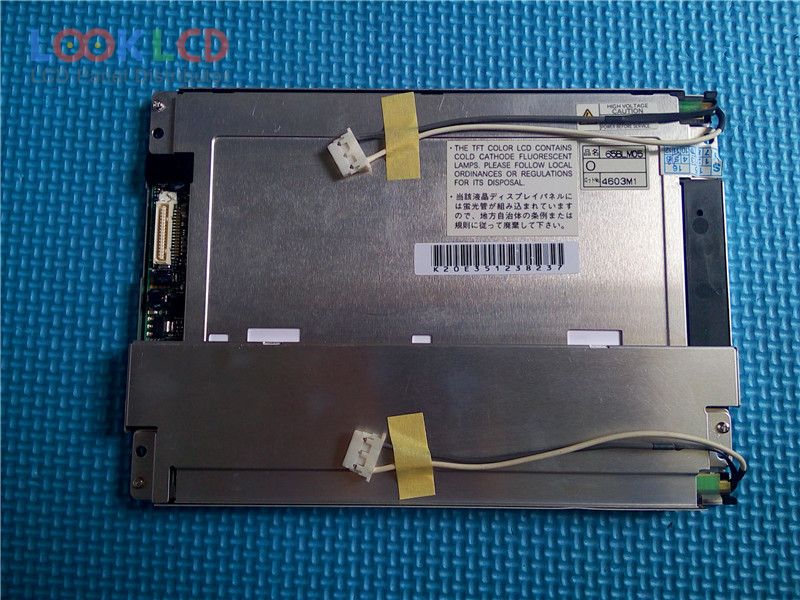

| Broj dijela | NL6448BC20-08 |
| Marka | NLT |
| Veličina | 6.5 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 250:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | NEC |
| panelni model | NL6448BC20-08 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 6.5 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 132.48×99.36 mm |
| obris | 178.8×126.8 mm |
| površinski | Antiglare (Haze 12%), Hard coating (2H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 250:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193142% |
| vrijeme odziva | 13/36 (Typ.)(Tr/Td) |
| kut gledanja | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | CMOS (1 ch, 6-bit), 31 pins |
| ulazni napon | 3.3/5.0V (Typ.)(VCC) |
| primjena | IA |
