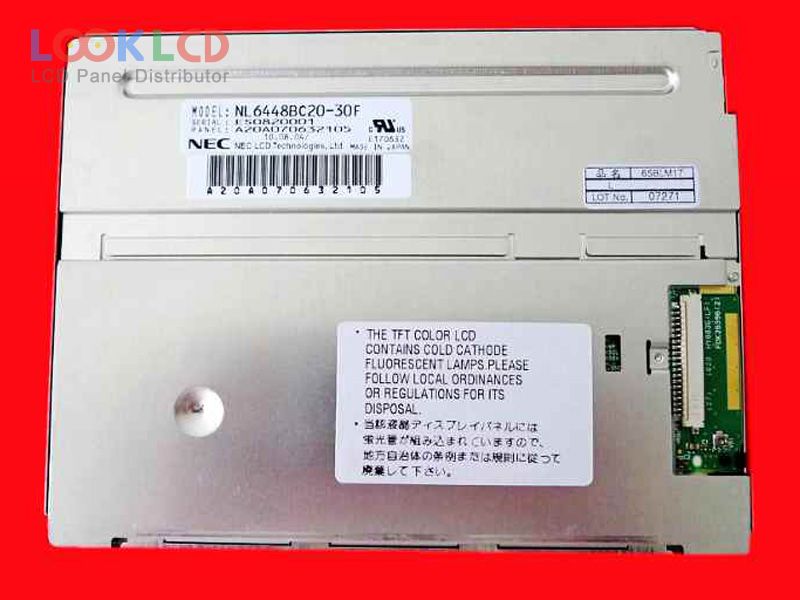

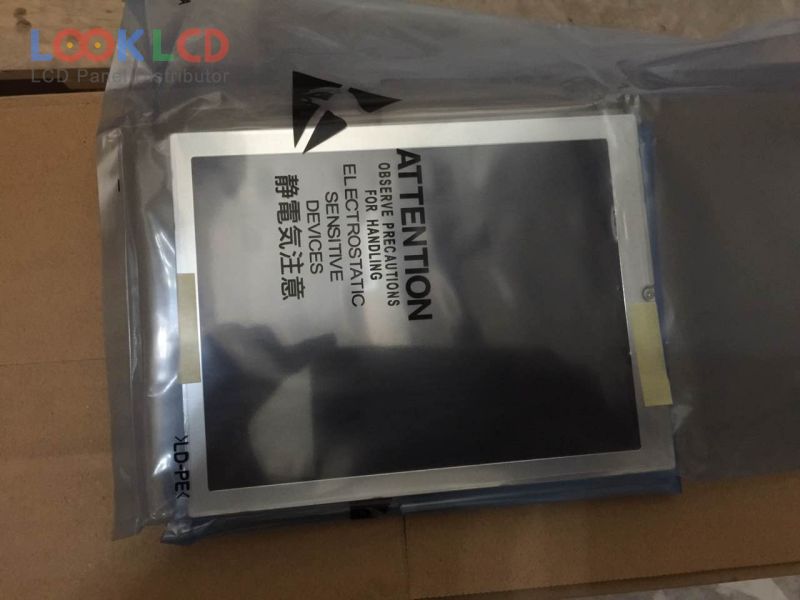

| Broj dijela | NL6448BC20-30F |
| Marka | NLT |
| Veličina | 6.5 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 1000 |
| CR | 800:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | NEC |
| panelni model | NL6448BC20-30F |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 6.5 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 132.48×99.36 mm |
| obris | 153×118 mm |
| površinski | Clear, Hard coating (3H) |
| svjetlina | 1000 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| vrijeme odziva | 3/15 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 stringsWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
