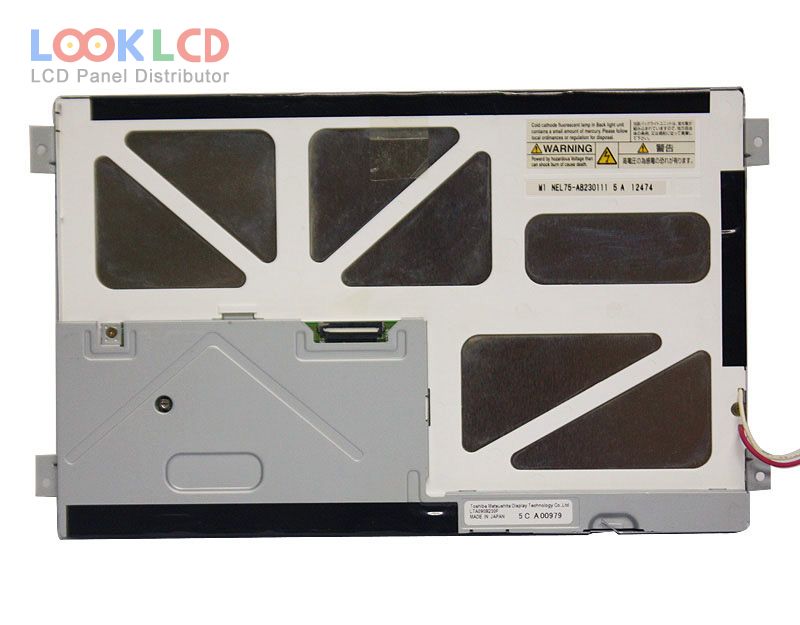

| Broj dijela | LTA090B230F |
| Marka | TOSHIBA |
| Veličina | 9.0 |
| Primjena | IA |
| Rezolucija | 536×328 |
| Sastav | LCM |
| Svjetlina | 480 |
| CR | 250:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | Toshiba Matsushita |
| panelni model | LTA090B230F |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 9.0 inch |
| rezolucija | 536(RGB)×328 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 196.18×120.05 mm |
| obris | 212.2×135.2 mm |
| površinski | Clear |
| svjetlina | 480 cd/m² (Typ.) |
| omjer kontrasta | 250:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 70/40 (Max.)(Tr/Td) |
| kut gledanja | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AT090TN10 | Innolux | 9.0 | 800×480 |
| CLAA090NA06CW | CPT | 9.0 | 1024×600 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| NL8048BC24-09D | NLT | 9.0 | 800×480 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
| HGS128321-B-EH-LV | Other | 2.2 | 128×32 |
| KCB104VG2CA-G43 | Kyocera | 10.4 | 640×480 |
| KL6448USTS-FFW | Kyocera | 6.9 | 640×480 |
| LM64P101 | SHARP | 7.2 | 640×480 |
| LT121EE01000 | TOSHIBA | 12.1 | 1280×800 |
| NL6448AC30-10 | NLT | 9.4 | 640×480 |
| NL6448BC33-64D | NLT | 10.4 | 640×480 |
| PD064VXA | E Ink | 6.4 | 640×480 |
| TM104SDH02 | Tianma | 10.4 | 800×600 |
| TM24064BBCWVBYD | Tianma | 5.2 | 240×64 |
