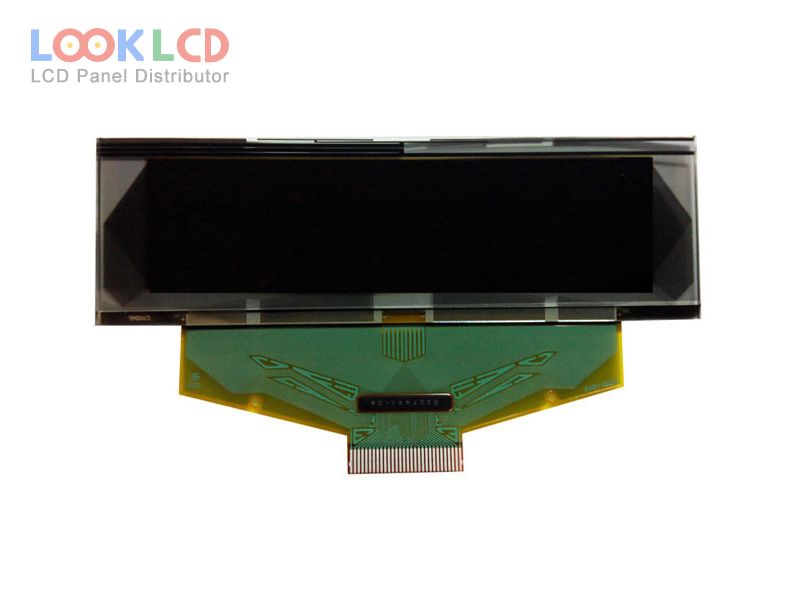

| Broj dijela | OEL9M0065-B-E |
| Marka | Other |
| Veličina | 2.7 |
| Primjena | IA |
| Rezolucija | 256×64 |
| Sastav | OLED |
| Svjetlina | |
| CR | 10000:1 |
| Boje | Grayscale(B) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI |
| marka panela | TRULY |
| panelni model | OEL9M0065-B-E |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 2.7 inch |
| rezolucija | 256×64 |
| aktivno područje | 66.53×16.61 mm |
| obris | 82×25.5×1.6 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 10000 : 1 (Min.) |
| boje prikaza | Grayscale(B) (4-bit) |
| kut gledanja | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 100Hz |
| vozač ic | COF Built-in SSD1322UR1 |
| signalno sučelje | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| primjena | IA |
| OEL9M0039-W-E | Other | 1.5 | 128×128 |
| OEL9M0039-Y-E | Other | 1.5 | 128×128 |
| OEL9M0064-B-E | Other | 2.0 | 128×32 |
| OEL9M0065-B-E | Other | 2.7 | 256×64 |
| OEL9M0065-R-E | Other | 2.7 | 256×64 |
| OEL9M0073-R-E | Other | 1.0 | 128×64 |
| OEL9M0078-R-E | Other | 1.45 | 132×16 |
| OEL9M0078-W-E | Other | 1.45 | 132×16 |
| OEL9M0082-R-E | Other | 1.1 | 128×128 |
| OEL9M0084-R-E | Other | 0.91 | 128×32 |
| G121AGE-L03 | Innolux | 12.1 | 800×600 |
| G240HW01 V0 | AUO | 24.0 | 1920×1080 |
| KG057QV1CA-G000 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020 | Kyocera | 5.7 | 320×240 |
| LM290WW2-SSA1 | LG Display | 29.0 | 2560×1080 |
| LQ10D341 | SHARP | 10.4 | 640×480 |
| OEL9M0078-B-E | Other | 1.45 | 132×16 |
| TM104SDH02 | Tianma | 10.4 | 800×600 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
| TX31D37VM0CAA | KOE | 12.1 | 800×600 |
