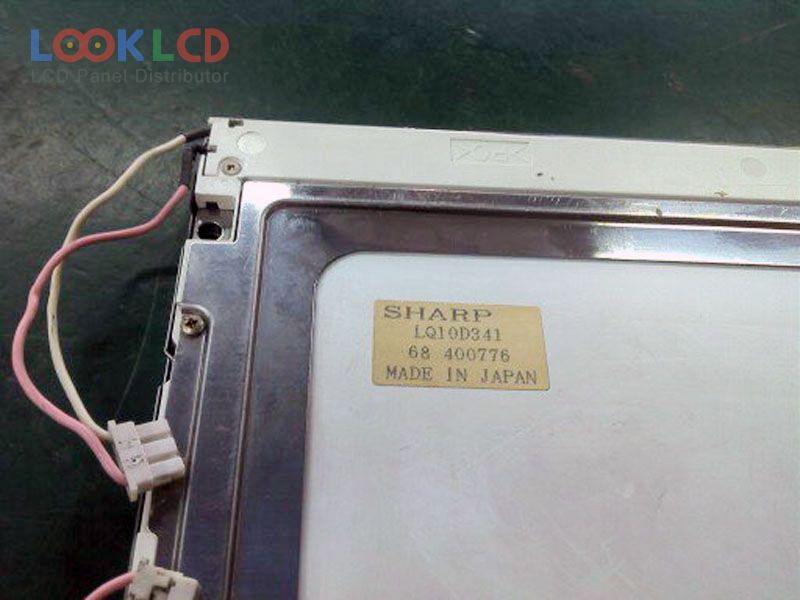

| Broj dijela | LQ10D341 |
| Marka | SHARP |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ10D341 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 211.2×158.4 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | |
| kut gledanja | |
| tip svjetiljke | |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 31 pins |
| primjena | IA |
