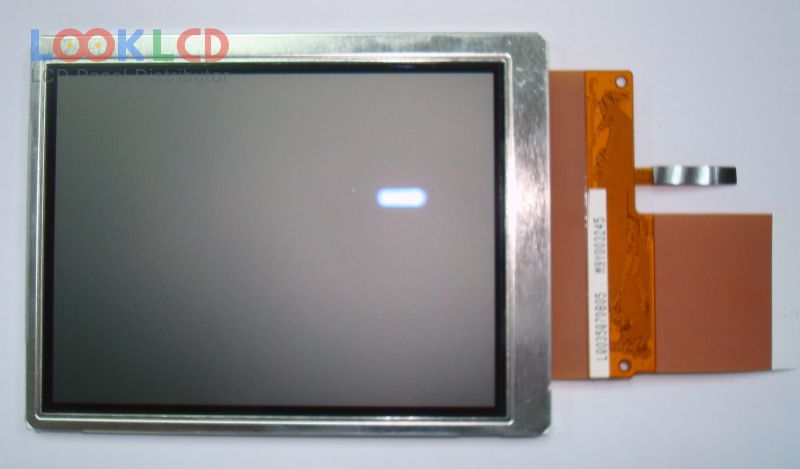

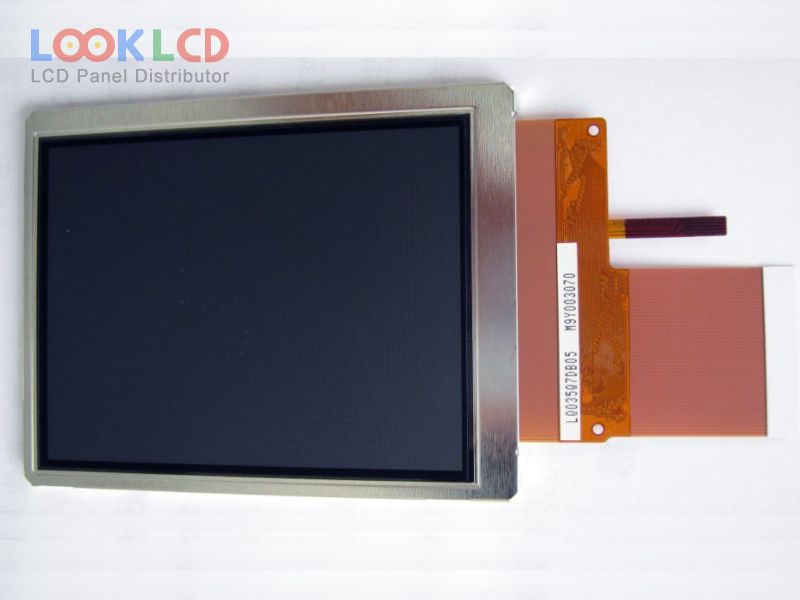

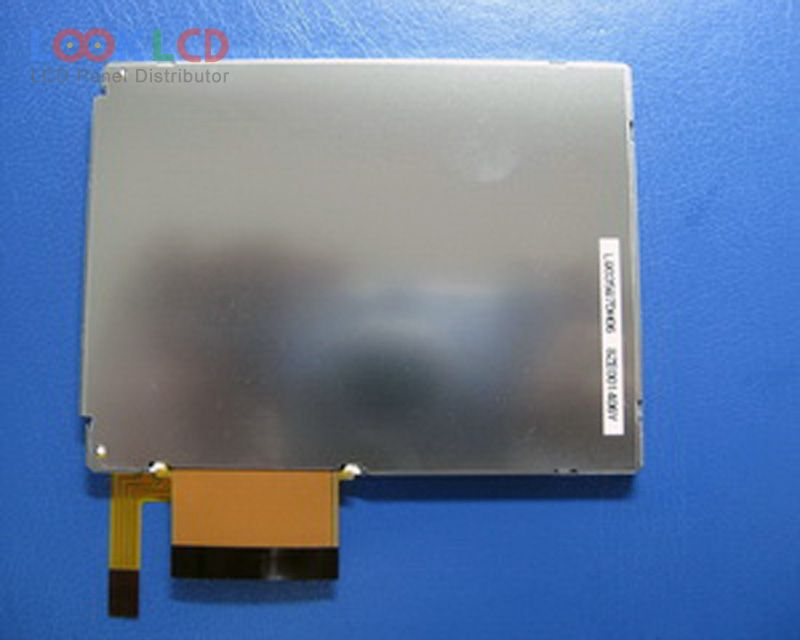

| Broj dijela | LQ035Q7DB05 |
| Marka | SHARP |
| Veličina | 3.5 |
| Primjena | HHP |
| Rezolucija | 240×320 |
| Sastav | LCM |
| Svjetlina | 160 |
| CR | 85:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ035Q7DB05 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 240(RGB)×320 , QVGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno područje | 53.64×71.52 mm |
| obris | 65×85×3.7 mm |
| površinski | Hard coating (3H) |
| svjetlina | 160 cd/m² (Typ.) |
| omjer kontrasta | 85:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 30/50 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 50 pins |
| ulazni napon | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| primjena | HHP |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| LQ035Q1DH02 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG11 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| 32WVF0H | SII | 3.2 | 480×800 |
| CMD500TT10-C1 | ORTUSTECH | 3.2 | 320×240 |
| G050VVN01.0 | AUO | 5.0 | 480×800 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LS037V7DW01 | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LTM035A776C | TOSHIBA | 3.5 | 240×320 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
