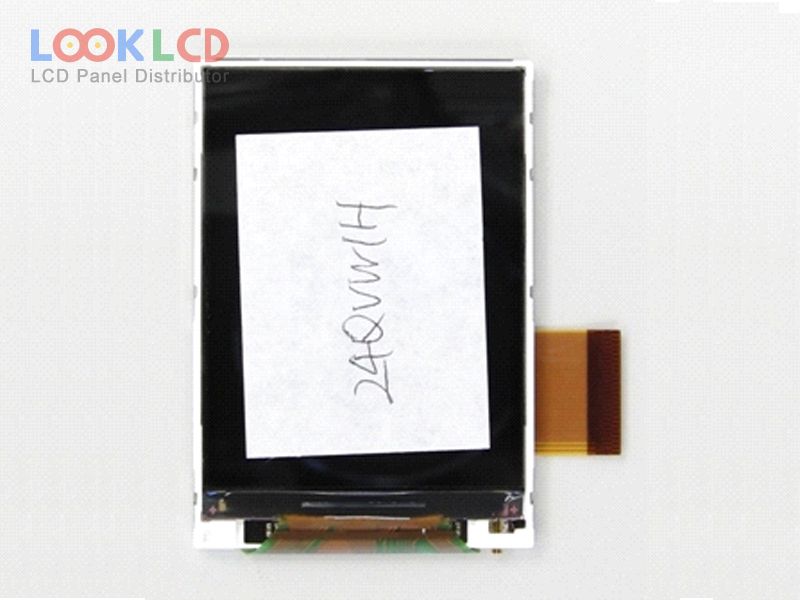

| Broj dijela | 24QVW1H |
| Marka | SII |
| Veličina | 2.4 |
| Primjena | HHP |
| Rezolucija | 240×320 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CPU |
| marka panela | SII |
| panelni model | 24QVW1H |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.4 inch |
| rezolucija | 240(RGB)×320 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 36.72×48.96 mm |
| obris | 42.06×60.26 mm |
| površinski | Clear, Hard coating |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 3S1PWLED |
| signalno sučelje | CPU, 51 pins |
| primjena | HHP |
