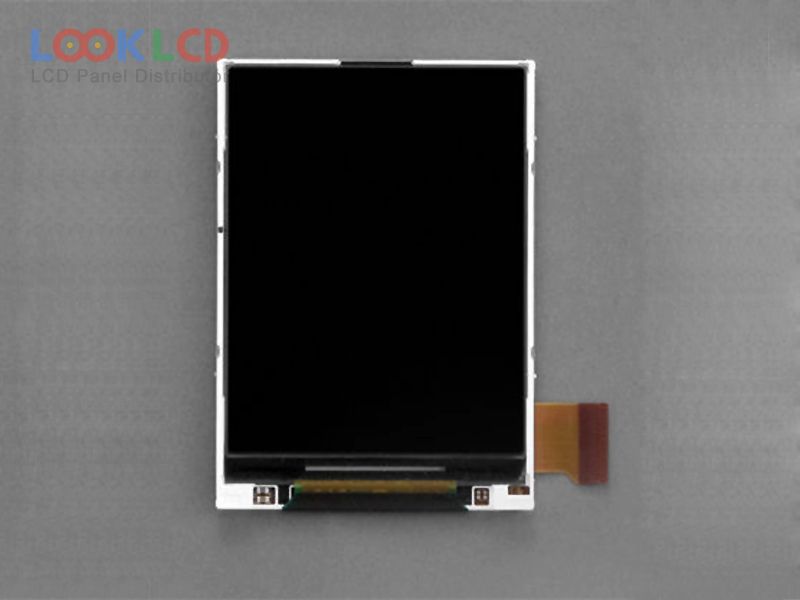

| Broj dijela | 24QVF1H |
| Marka | SII |
| Veličina | 2.4 |
| Primjena | HHP |
| Rezolucija | 240×320 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CPU |
| marka panela | SII |
| panelni model | 24QVF1H |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.4 inch |
| rezolucija | 240(RGB)×320 , QVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 36.72×48.96 mm |
| obris | 42.72×60.4 mm |
| površinski | Clear, Hard coating |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193172% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 4S1PWLED |
| signalno sučelje | CPU, 35 pins |
| ulazni napon | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| primjena | HHP |
| 24QVF1H | SII | 2.4 | 240×320 |
| 24QVF1J | SII | 2.4 | 240×320 |
| 24QVF2H | SII | 2.4 | 240×320 |
| 24QVW1H | SII | 2.4 | 240×320 |
| 24QVW2H | SII | 2.4 | 240×320 |
| LQ024B7UD01 | SHARP | 2.4 | 160×240 |
| RGS24128064WW001 | RiTdisplay | 2.4 | 128×64 |
| TD024THEB2 | TPO | 2.4 | 480×240 |
| TM12864G3CCWGWA-1 | Tianma | 2.4 | 128×64 |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| AM-320240-020A | Other | 2.0 | 320×240 |
| COM35H3M10XTC | ORTUSTECH | 3.5 | 240×320 |
| LM038QC1R10 | SHARP | 3.8 | 320×240 |
| LQ035Q7DB02R | SHARP | 3.5 | 240×320 |
| LQ038B7DB01 | SHARP | 3.8 | 320×480 |
| LS024Q3UX12(G) | SHARP | 2.4 | 320×240 |
| LS037V7DW02 | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
