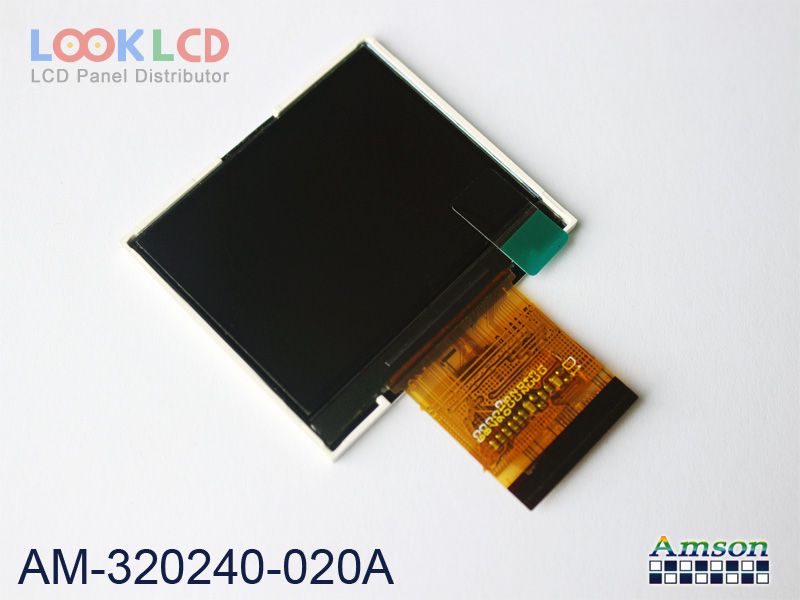

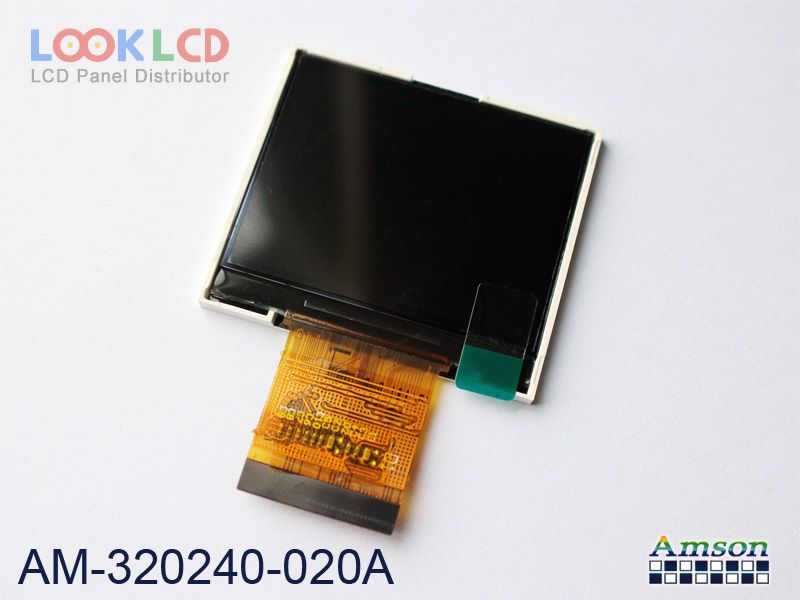

| Broj dijela | AM-320240-020A |
| Marka | Other |
| Veličina | 2.0 |
| Primjena | HHP |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Serial RGB |
| marka panela | Amson |
| panelni model | AM-320240-020A |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.0 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 40.8×30.6 mm |
| obris | 46.1×40.96×2.7 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | |
| kut gledanja | |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | Serial RGB (6-bit) + SPI, 40 pins |
| ulazni napon | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| primjena | HHP |
| AM-320240-015A | Other | 1.5 | 320×240 |
| AM-320240-020A | Other | 2.0 | 320×240 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| AM-320240N1TMQW-T30H-D(R) | AMPIRE | 5.7 | 320×240 |
| EG020AS012 | PDI | 2.0 | 200×96 |
| LS020B8UD02 | SHARP | 2.0 | 176×220 |
| LTS200QC-F0V | Samsung | 2.0 | 176×220 |
| OEL9M0064-G-E | Other | 2.0 | 128×32 |
| OEL9M0064-R-E | Other | 2.0 | 128×32 |
| 24QVW1H | SII | 2.4 | 240×320 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| AM-320240-015A | Other | 1.5 | 320×240 |
| AM-320240-020A | Other | 2.0 | 320×240 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| COM35T3112DTR | ORTUSTECH | 3.5 | 240×320 |
| DLC0090AZG | Other | 0.91 | 80×160 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| TX09D30VM1CCA | KOE | 3.5 | 240×320 |
