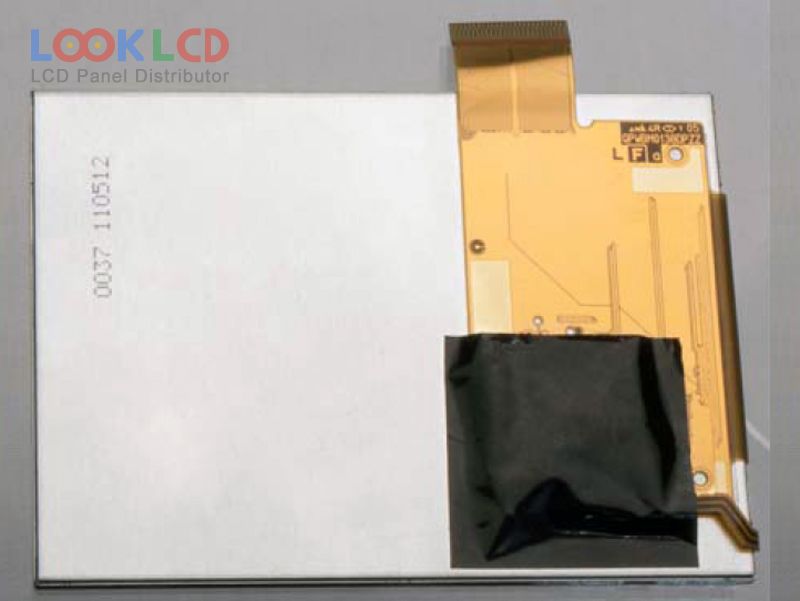

LS037V7DW03A

LS037V7DW03A
LS037V7DW03A thumb
Marka
SHARP
Veličina
3.7
Primjena
HHP
Rezolucija
480×640
Sastav
LCM
Svjetlina
200
CR
200:1
Boje
262K
Pozadinsko osvjetljenje
WLED
Sučelje
TTL
In Stock
5600
Tehnički podaci

Broj dijela LS037V7DW03A
MarkaSHARP
Veličina3.7
PrimjenaHHP
Rezolucija480×640
SastavLCM
Svjetlina200
CR200:1
Boje262K
Pozadinsko osvjetljenjeWLED
SučeljeTTL
marka panelaSHARP
panelni modelLS037V7DW03A 2 Compatible model
vrsta panela CG-Silicon , LCM
veličina ploče3.7 inch
rezolucija480(RGB)×640 , VGA
način prikazaASV, Normally Black, Transflective
aktivno područje56.16×74.88 mm
obris65×89.2 mm
površinski
svjetlina200 cd/m² (Typ.)
omjer kontrasta200:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective)
boje prikaza262K (6-bit), CIE193135%
vrijeme odziva15/20 (Typ.)(Tr/Td)
kut gledanja80/80/80/80 (Typ.)(CR≥5)(L/R/U/D)
tip svjetiljke7S1PWLEDWithout Driver
signalno sučeljeParallel RGB (1 ch, 6-bit), 51 pins
ulazni napon3.3V (Typ.)(VSHD)
primjenaHHP
Obiteljski model
LS037V3DX01 SHARP 3.7 640×480
LS037V3DX02 SHARP 3.7
LS037V7DD05 SHARP 3.7 480×640
LS037V7DD06 SHARP 3.7 480×640
LS037V7DD06R SHARP 3.7 480×640
LS037V7DW01 SHARP 3.7 480×640
LS037V7DW02 SHARP 3.7 480×640
LS037V7DW03 SHARP 3.7 480×640
LS037V7DW03B SHARP 3.7 480×640
LS037V7DW06 SHARP 3.7 480×640
