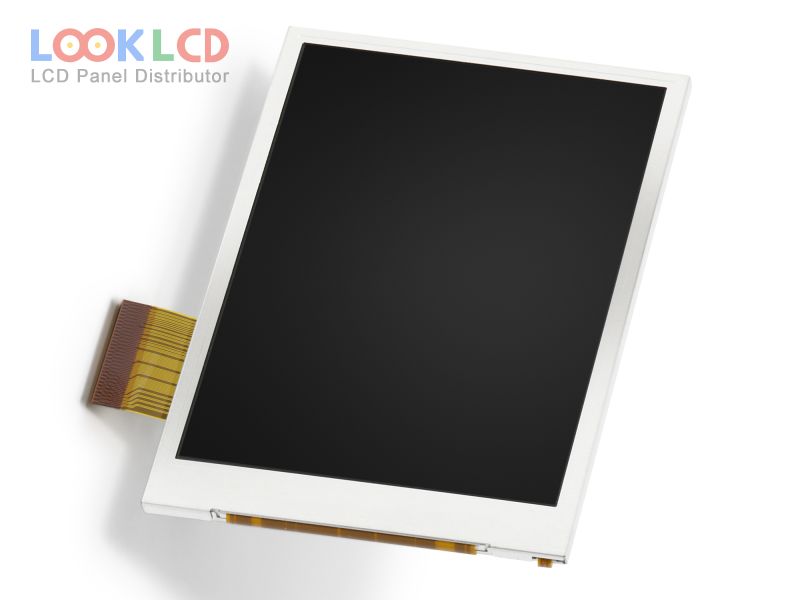

| Broj dijela | LS037V7DW06 |
| Marka | SHARP |
| Veličina | 3.7 |
| Primjena | HHP |
| Rezolucija | 480×640 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 900:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LS037V7DW06 |
| vrsta panela | CG-Silicon , LCM |
| veličina ploče | 3.7 inch |
| rezolucija | 480(RGB)×640 , VGA |
| način prikaza | ASV, Normally Black, Transflective |
| aktivno područje | 56.16×74.88 mm |
| obris | 65×89.2×3.6 mm |
| površinski | Antiglare |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 900:1 (Typ.)(Transmissive) |
| boje prikaza | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| vrijeme odziva | 15/20 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit) + SPI, 61 pins |
| ulazni napon | 5.5/1.8V (Typ.)(VDD5/VCI) |
| primjena | HHP |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW01 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| CMD500TT10-C1 | ORTUSTECH | 3.2 | 320×240 |
| COM32H3N74ULC | ORTUSTECH | 3.2 | 480×800 |
| COM35H3M10XTC | ORTUSTECH | 3.5 | 240×320 |
| DLC0350AMG-4 | Other | 3.5 | 320×240 |
| LQ039Q2DS51 | SHARP | 3.9 | 320×240 |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
