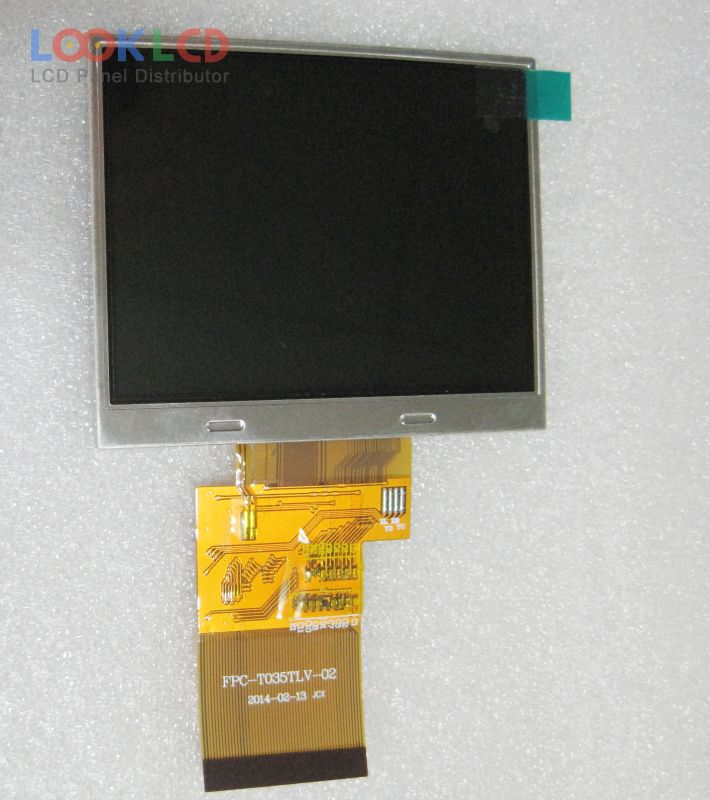

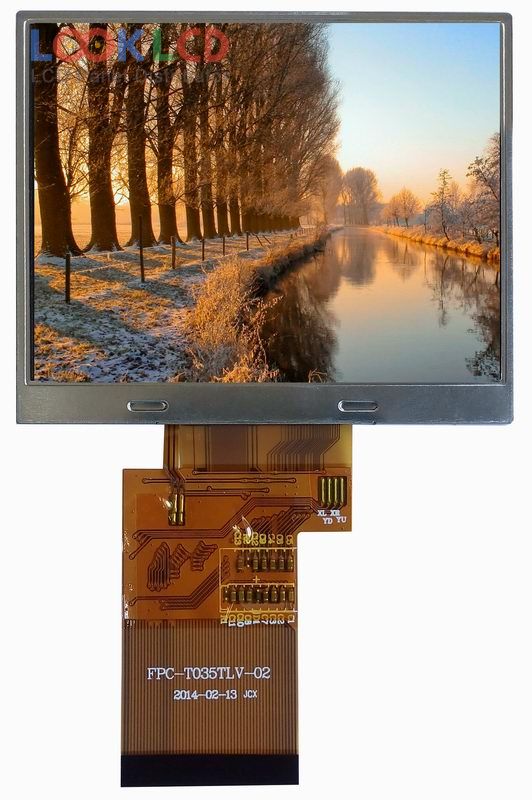

| Broj dijela | DLC0350AMG-4 |
| Marka | Other |
| Veličina | 3.5 |
| Primjena | HHP |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 600 |
| CR | 350:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Parallel/Serial |
| marka panela | DLC |
| panelni model | DLC0350AMG-4 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 70.08×52.56 mm |
| obris | 76.9×64×3.25 mm |
| površinski | |
| svjetlina | 600 cd/m² (Typ.) |
| omjer kontrasta | 350:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193150% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | HHP |
| A035QN05 V1 | AUO | 3.5 | 320×240 |
| DLC0350AMG-4 | Other | 3.5 | 320×240 |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| DLC0350CZG-T | Other | 3.5 | 320×240 |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| DLC0350FVG-5 | Other | 3.5 | 320×240 |
| DLC0350SZG | Other | 3.5 | 480×640 |
| DLC0350TZG | Other | 3.5 | 240×320 |
| LTV035QV-F04 | Samsung | 3.5 | 320×240 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| 20QVF1H | SII | 2.0 | 240×320 |
| 30WQF0H | SII | 3.0 | 240×400 |
| 32NHF0H | SII | 3.2 | 360×640 |
| AM-240320-022F | Other | 2.2 | 240×320 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| COM35T3112DTR | ORTUSTECH | 3.5 | 240×320 |
| LQ038B7DB01 | SHARP | 3.8 | 320×480 |
| LS029B4DN01 | SHARP | 2.9 | 240×456 |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
