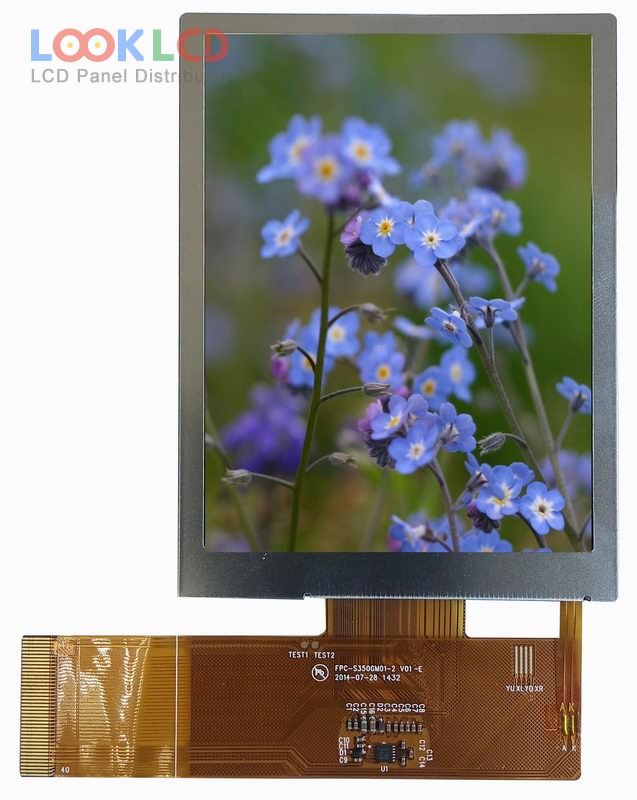

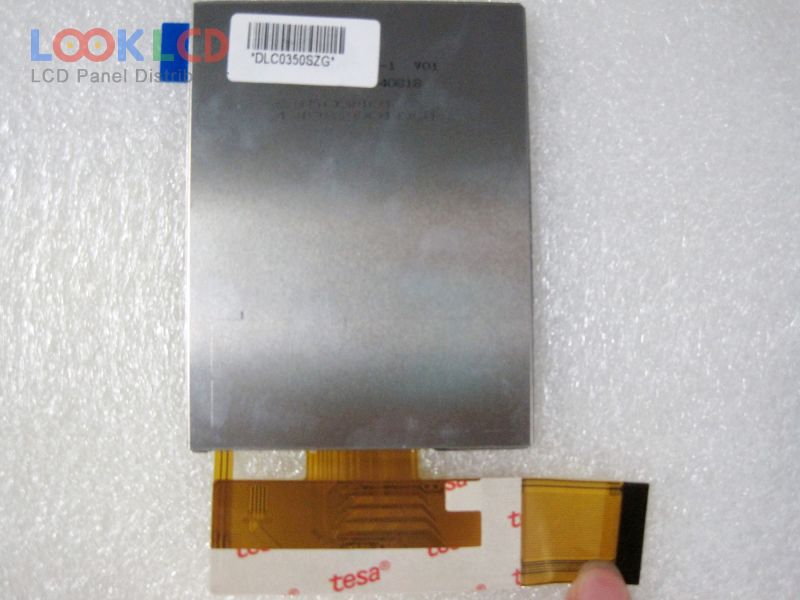

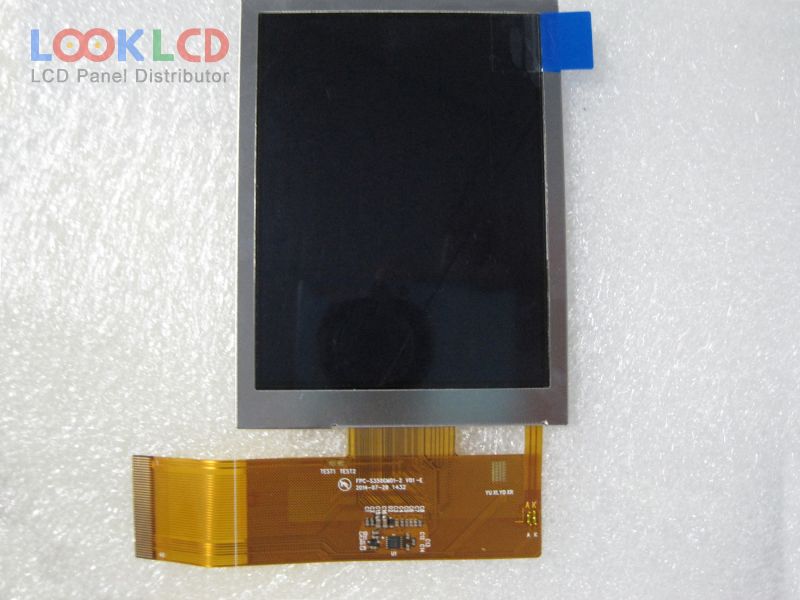

| Broj dijela | DLC0350SZG |
| Marka | Other |
| Veličina | 3.5 |
| Primjena | MPH |
| Rezolucija | 480×640 |
| Sastav | LCM |
| Svjetlina | 120 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | DLC |
| panelni model | DLC0350SZG |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 480(RGB)×640 , VGA |
| način prikaza | Normally Black, Transflective |
| aktivno područje | 53.57×71.42 mm |
| obris | 64×85×5.2 mm |
| površinski | |
| svjetlina | 120 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| boje prikaza | 262K (6-bit), CIE193155% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 40 pins |
| ulazni napon | 2.8/2.8V (Typ.)(IOVCC/VCC) |
| primjena | MPH |
