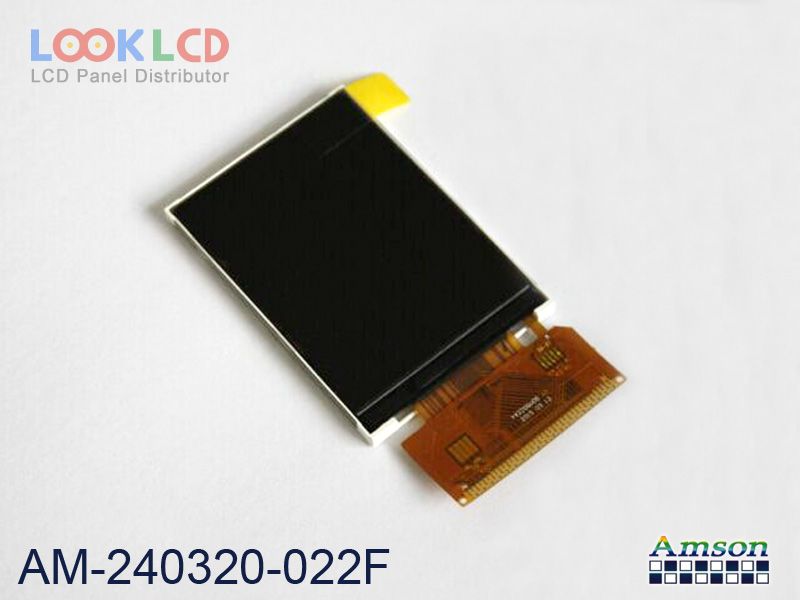

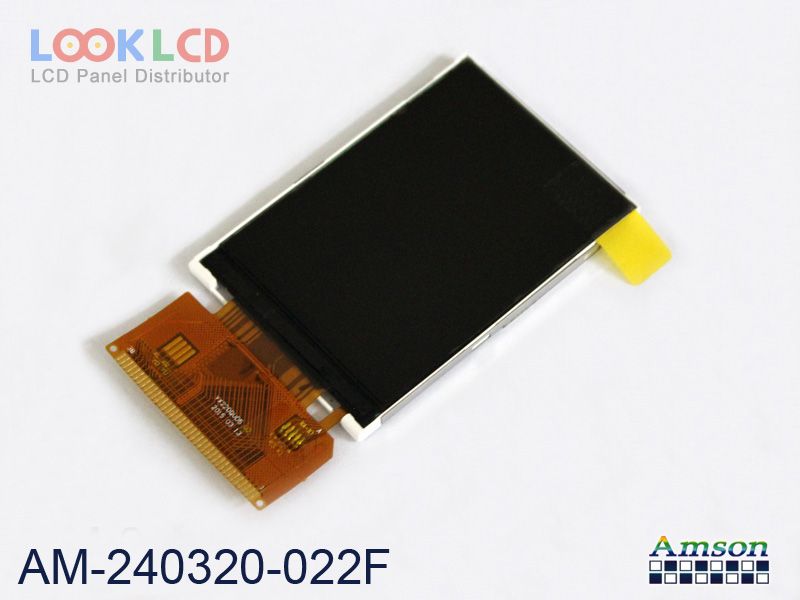

| Broj dijela | AM-240320-022F |
| Marka | Other |
| Veličina | 2.2 |
| Primjena | HHP |
| Rezolucija | 240×320 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CPU |
| marka panela | Amson |
| panelni model | AM-240320-022F |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.2 inch |
| rezolucija | 240(RGB)×320 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 33.48×44.64 mm |
| obris | 38.38×59.19×2.6 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K |
| vrijeme odziva | |
| kut gledanja | |
| tip svjetiljke | 4 stringsWLEDWithout Driver |
| signalno sučelje | 8/16-bit 8080 parallel, 38 pins |
| ulazni napon | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| primjena | HHP |
