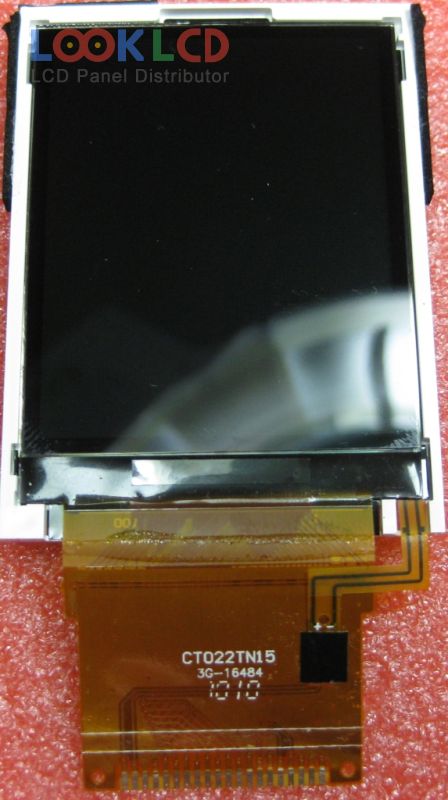

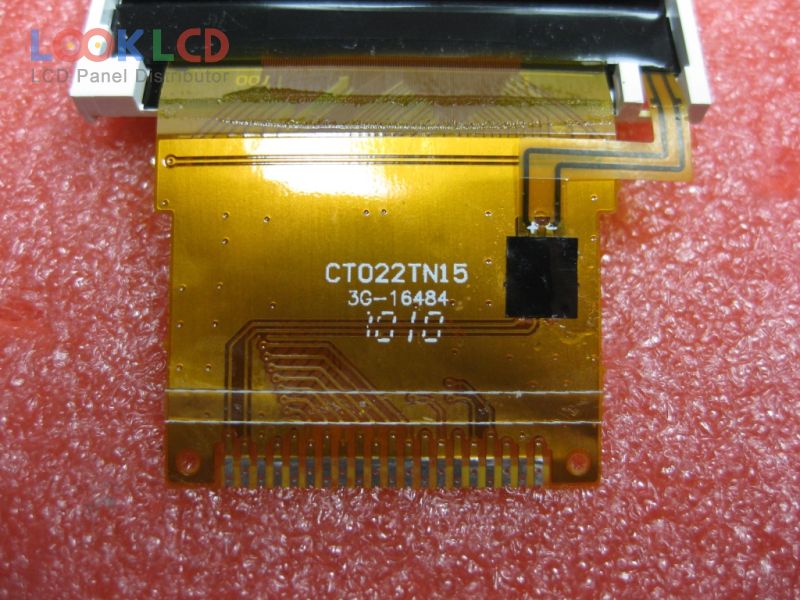

| Broj dijela | CT022TN15 |
| Marka | Innolux |
| Veličina | 2.2 |
| Primjena | MPH |
| Rezolucija | 176×220 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 300:1 |
| Boje | 65K/262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CPU |
| marka panela | INNOLUX |
| panelni model | CT022TN15 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.2 inch |
| rezolucija | 176(RGB)×220 , QCIF+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 34.848×43.56 mm |
| obris | 42.3×57.5 mm |
| površinski | |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 65K/262K , CIE193150% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 55/55/55/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4S1PWLEDWithout Driver |

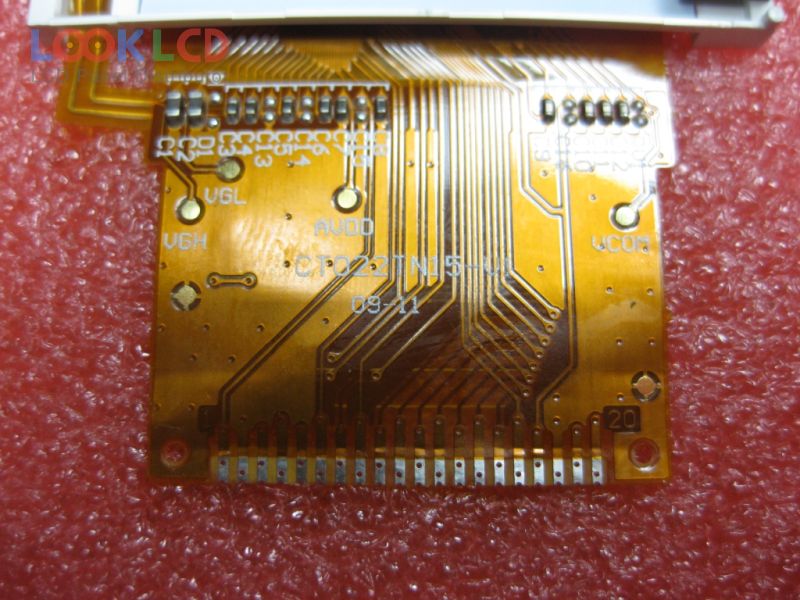

| signalno sučelje | CPU, 20 pins |
| ulazni napon | 3.3/3.3V (Typ.)(VDD/VCI) |
| primjena | MPH |
