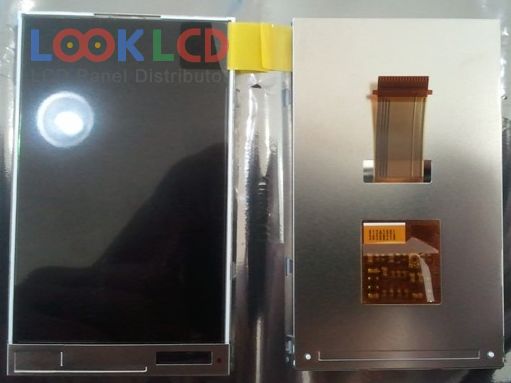

| Broj dijela | TX08D13VM0AAA |
| Marka | KOE |
| Veličina | 3.0 |
| Primjena | MPH |
| Rezolucija | 240×400 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 300:1 |
| Boje | 65K/262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CPU |
| marka panela | HITACHI |
| panelni model | TX08D13VM0AAA |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.0 inch |
| rezolucija | 240(RGB)×400 , WQVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 38.88×64.8 mm |
| obris | 45.6×76 mm |
| površinski | |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 65K/262K , CIE193160% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1S4PWLEDWithout Driver |
| signalno sučelje | CPU, 35 pins |
| ulazni napon | 2.8/2.8V (Typ.)(VCi/IOVCC) |
| primjena | MPH |
