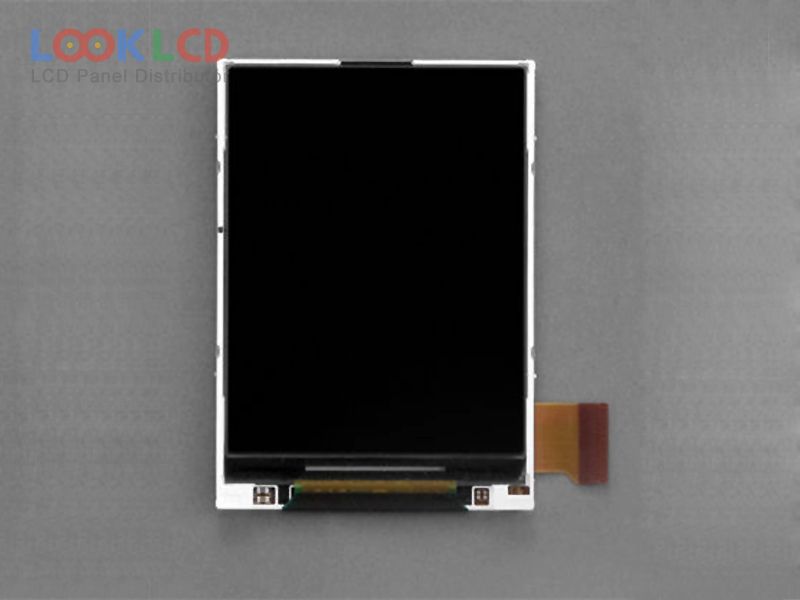

| Broj dijela | 24QVF2H |
| Marka | SII |
| Veličina | 2.4 |
| Primjena | HHP |
| Rezolucija | 240×320 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SII |
| panelni model | 24QVF2H |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.4 inch |
| rezolucija | 240(RGB)×320 , QVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 36.72×48.96 mm |
| obris | 42.72×60.4 mm |
| površinski | Clear, Hard coating |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193172% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 4S1PWLED |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) + SPI, 35 pins |
| ulazni napon | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| primjena | HHP |
