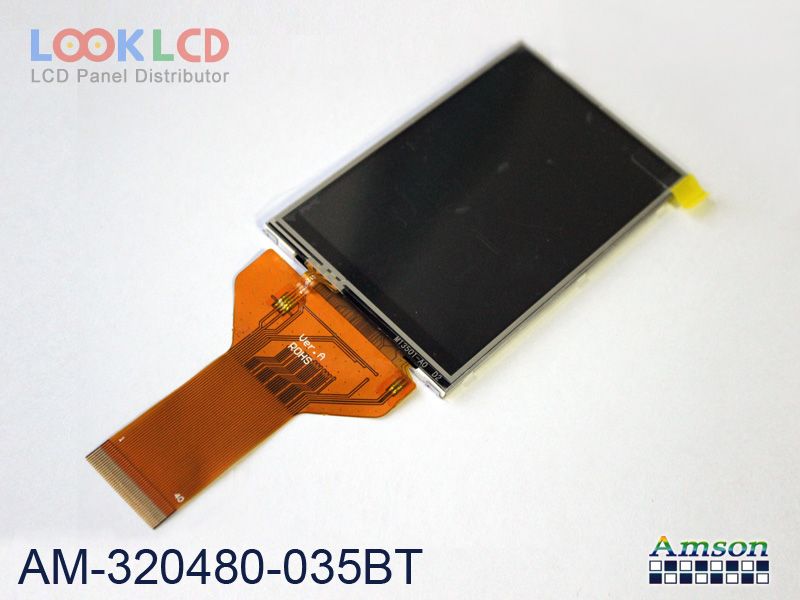

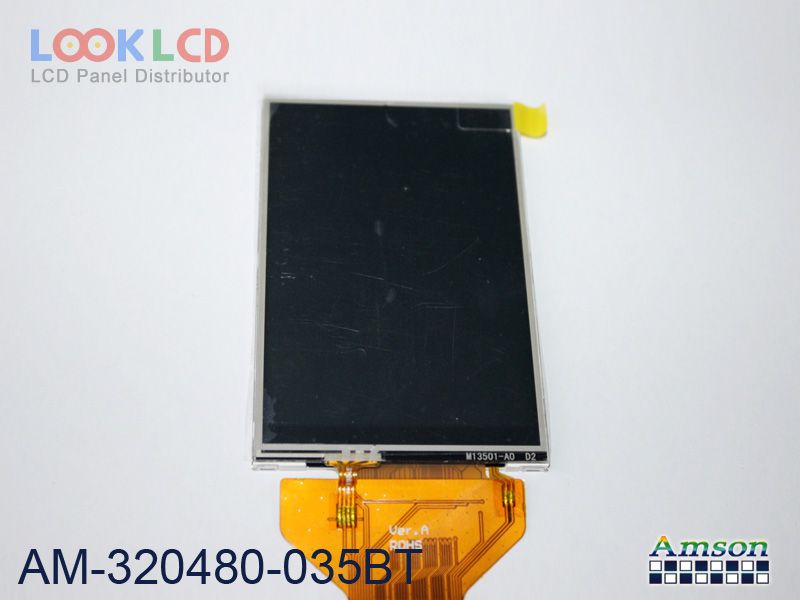

| Broj dijela | AM-320480-035BT |
| Marka | Other |
| Veličina | 3.5 |
| Primjena | HHP |
| Rezolucija | 320×480 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CPU |
| marka panela | Amson |
| panelni model | AM-320480-035BT |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×480 , HVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 48.96×73.44 mm |
| obris | 55.66×85.04×3.7 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | |
| kut gledanja | |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | 8/16-bit 8080 parallel, 40 pins |
| ulazni napon | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| primjena | HHP |
